OPTICAL SCALES

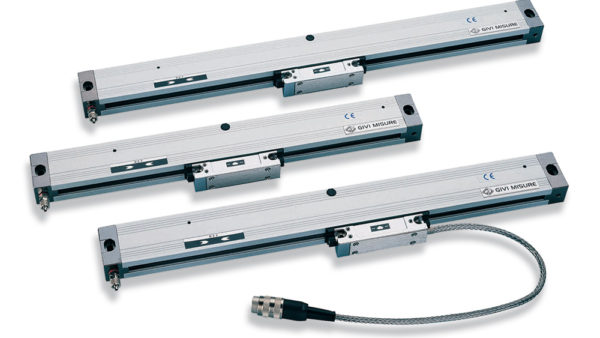

High precision of gratings whose linear thermal expansion is suitable to the application required. Measuring lengths up to 30 m and resolutions up to 0.1 µm. Certificate of metrological inspection supplied with each scale.
Optical scales are manufactured in compliance with strict quality standards. The range includes six different models. The product literature, which can be supplied on request, focuses the high quality and reliability of products.

 ISA 2320

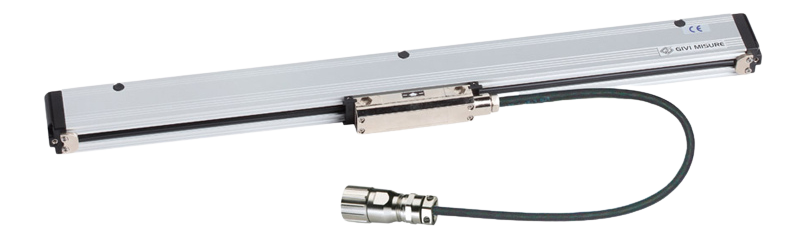

Small-size incremental scale, for applications with limited installation space.

 SCR 3923

Multipurpose incremental optical scale of small overall dimensions for applications on machine tools or operating machines. Standard or MODULAR versions available.

GVS 200

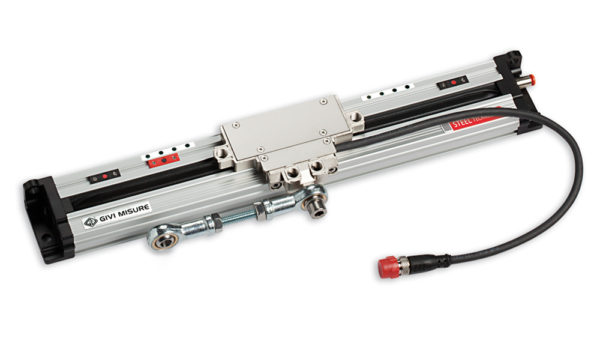

Self-aligned incremental optical scale, with glass measuring support. Suitable for applications on SYNCHRONIZED PRESS BRAKES.

GVS 204

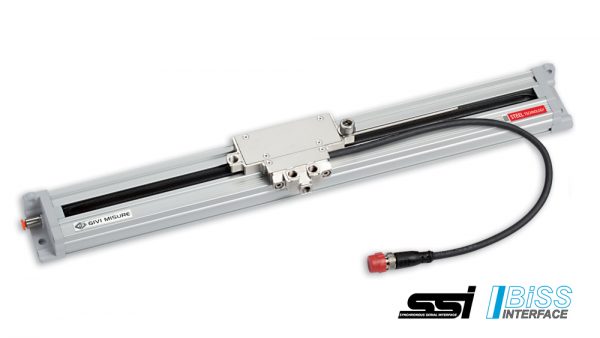

Self-aligned absolute optical scale, with glass measuring support.
SERIAL INTERFACE SSI-BiSS, with or without 1 Vpp analog signal.

GVS 600

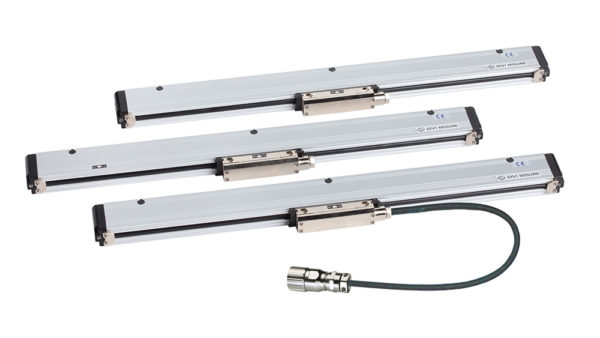

Incremental optical scale with glass measuring support, designed for CNC machine tools.
Resolutions up to 0.01 µm. Sine-wave 1 Vpp or TTL signal output.

GVS 608

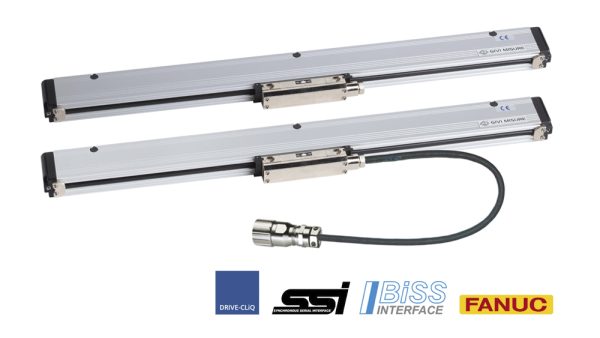

Absolute optical scale with glass measuring support designed for CNC machine tools.
Resolutions up to 0.1 µm. Serial interface SSI-BiSS and Siemens DRIVE-CLiQ.

GMS

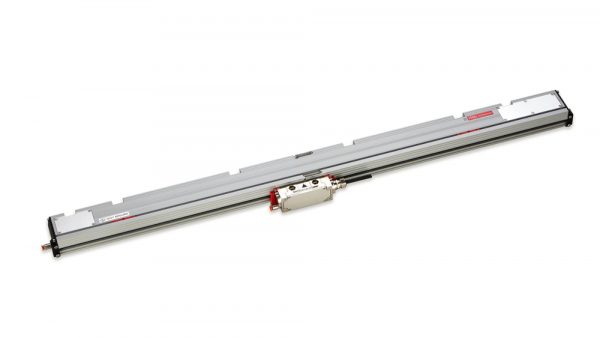

Incremental modular optical scale, best suited for LONG STROKES. Sine-wave 1 Vpp or TTL signal output.
