GVS 908

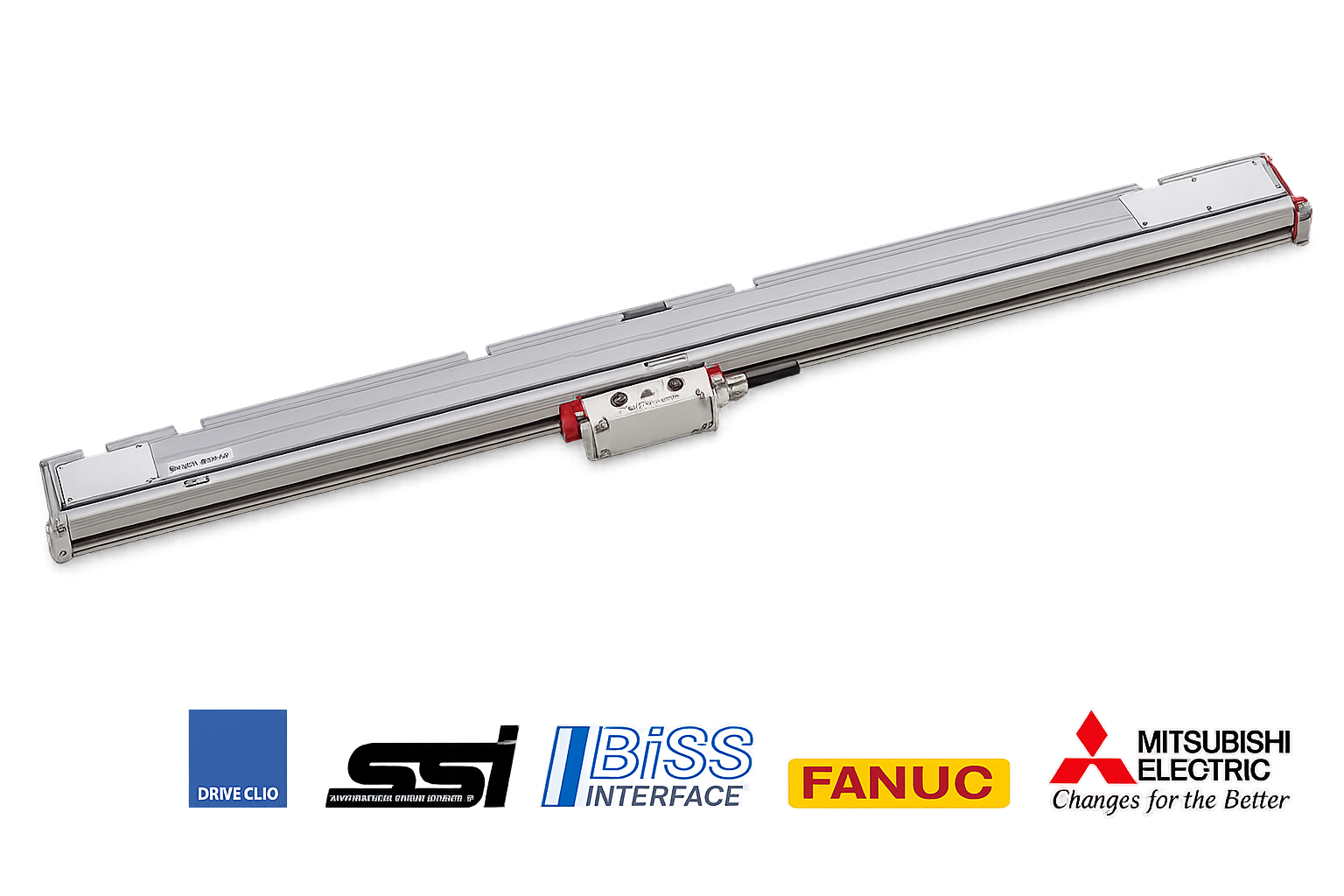

Absolute optical encoder for large machines
Overview
Absolute optical encoder, available in a single piece or in modular version for large machines (up to 30040 mm of measuring length).
Application in various industrial fields such as machine tools, vertical lathes, gantry machines, laser/plasma cutting machines, robotics, automation, etc.
Stainless steel grating, integral with the machine guide, for an excellent accuracy at any temperature.
Serial interface SSI – BiSS C (unidirectional), with or without 1 Vpp analog signal, Siemens DRIVE-CLiQ, FANUC α-αi and MITSUBISHI High Speed. Direct reading of absolute measure.
Resolutions up to 0.1 μm. Accuracy grade ± 5 μm.
Rigidly bound modules, for a perfect seal against liquids and environmental dirty, unaltered over time.
Adjustable cable output, through double connector.
Wide alignment tolerances.
Pressurization from both sides of the scale and/or of the transducer.
