MAGNETIC SCALES

Magnetic systems for no-contact measurements of accurate linear displacements. Small-sized sensors. Stainless steel support for magnetic band equipped with bi-adhesive tape for an easy and economical fixing.
Max. frequency 300 kHz and resolution range up to 0.5 µm. Traversing speed up to 12 m/s and max shock resistance. 1000 m/s2 (11 ms). IP 67 protection DIN 40050/IEC 529 as standard.

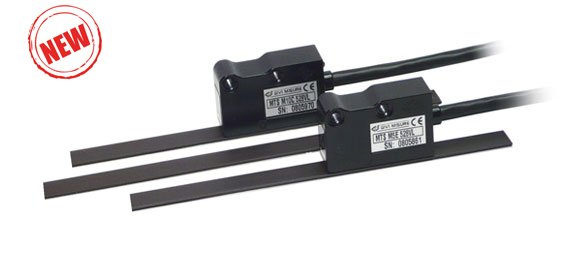

 MTS


High-precision reading system with SQUARE-WAVE OUTPUT

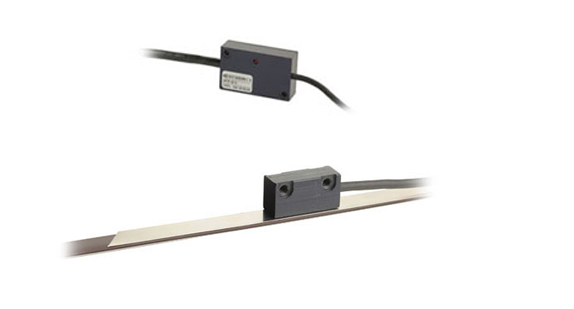

 MTR

High-precision miniaturized reading system with SQUARE-WAVE OUTPUT

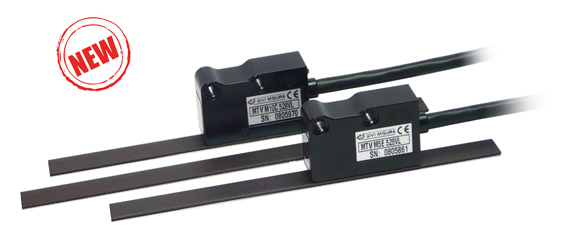

MTV

High-precision reading system with SINE-WAVE OUTPUT (1 Vpp)

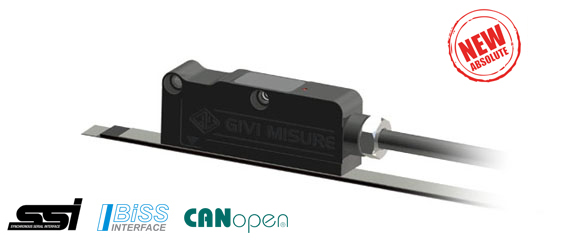

AGM

Absolute magnetic sensor. Serial interface SSI-BiSS, with or without 1 Vpp analog signal

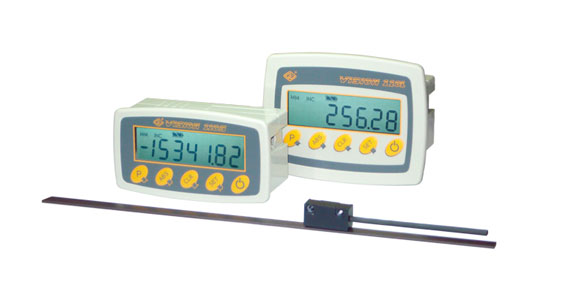

 VISION 110


Digital readout with magnetic sensor.

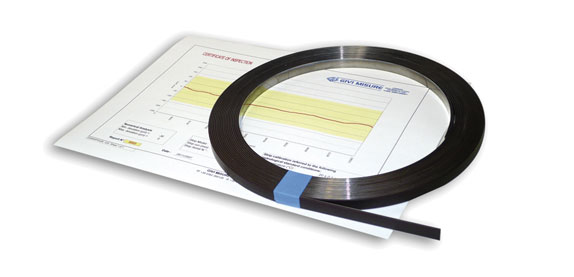

 MP

Magnetic bands for MTS, MTV and MTR sensors.

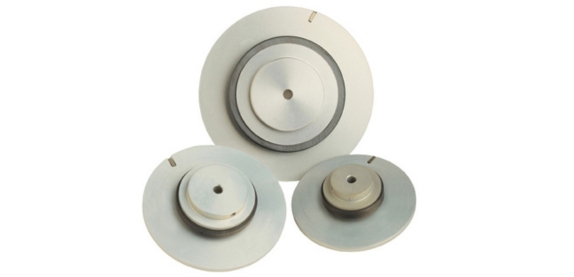

MR

Magnetic ring for sensors MTS, MTV and MTR

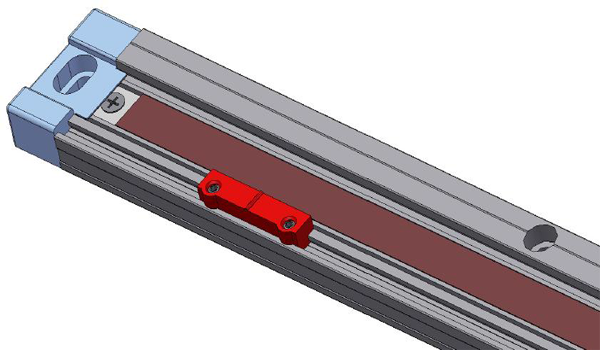

 GVS 100


Non- Contact Linear Magnetic Scales used on conventional and CNC machines with reliable accuracy.

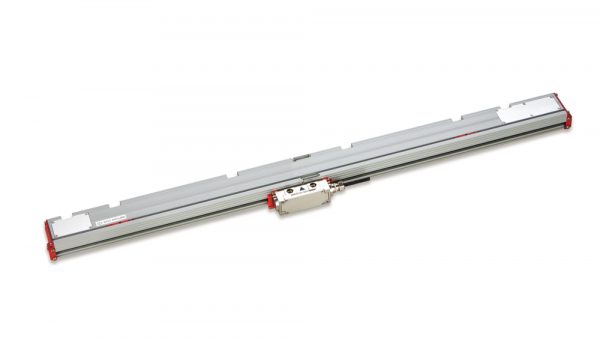

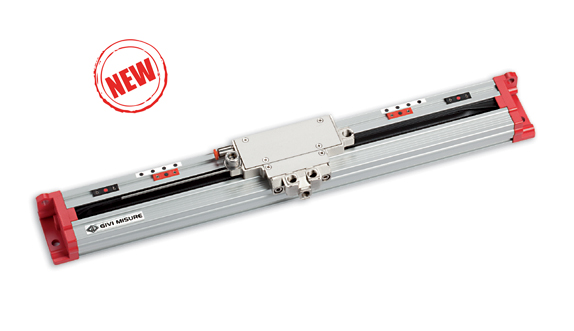

GVS 215

Self-aligned incremental magnetic scale. Suitable for applications on
SYNCHRONIZED PRESS BRAKES.

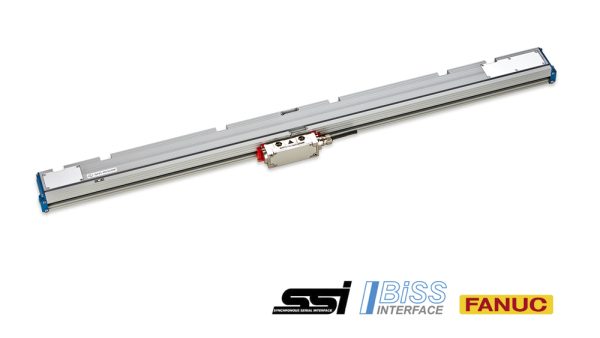

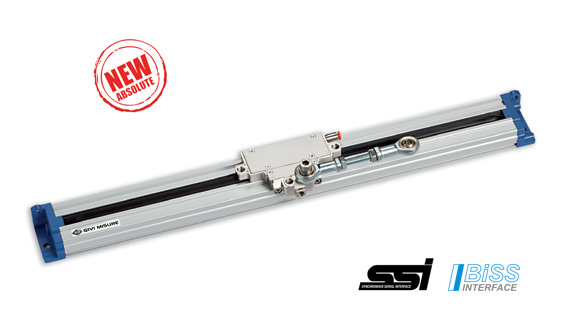

 GVS 219


Self-aligned absolute magnetic scale. SERIAL INTERFACE SSI BiSS,
with or without 1 Vpp analog signal.

  ACCESSORIES

Stainless steel cover (CV103) and aluminium support (SP202) for magnetic band. External zero reference for magnetic band (SME010) and for magnetic ring (SME010MR).
