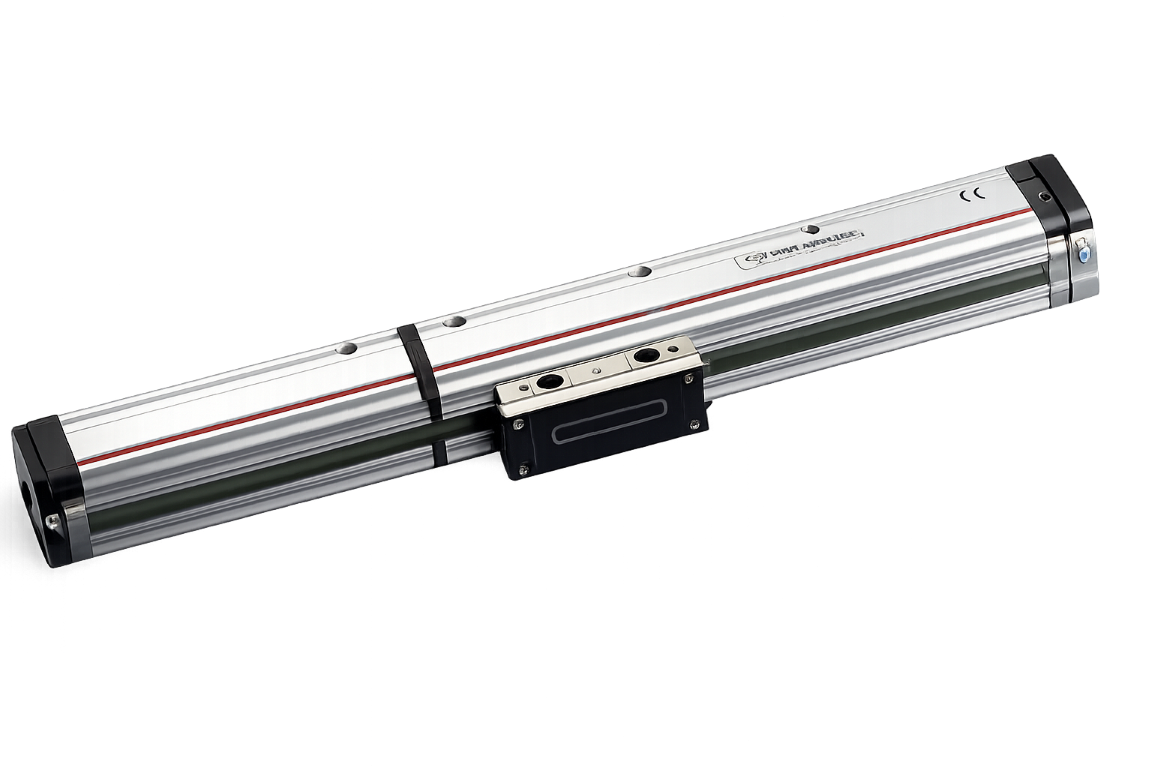

INCREMENTAL OPTICAL SCALES FOR CNC APPLICATIONS - GVS 900

Modular optical scale with stainless steel grating. particularly suitable for long strokes (measuring length up to 30,040 mm with steps of 200 mim. Segments of different lengths).
Rugged and heavy profile, in anodized aluminium.
Coupling gaskets between the modules for a better fit of mechanical parts (in case of disassembly and reassembly).
Reference indexes at coded distance, or at constant step (50 mm) or selectable.
Sine-wave or TTL signal output.
Power supply 5 Vdc +1-5%

GVS 900 V40 Sine wave Output

GVS 900 TTL Output

GVS 900 V40 Sine wave Output

GVS 900 TTL Output

The equipments supplied by company, will help end users to improve quality and productivity levels.

Plot No 488, VTPC Export Bhavan,
14th Cross, IV Phase,
Peenya Industrial Area
Bangalore – 560058

Resolution	up to 0.1 µm
Grating pitch	40µm
Accuracy grade	± 5 um
Max. traversing speed	60 m/min
Reference indexes	coded distance / constant step / selectable
Output signals	sine wave 1 Vpp
Protection class	IP 54 standard IP 64 pressurized
Download Brochure ↓

Resolution	10 -5- 1 -0.5 µm
Grating pitch	40µm
Accuracy grade	± 5 um
Max. traversing speed	60 m/min
Reference indexes	coded distance / constant step / selectable
Output signals	LINE DRIVER
Protection class	IP 54 standard IP 64 pressurized
