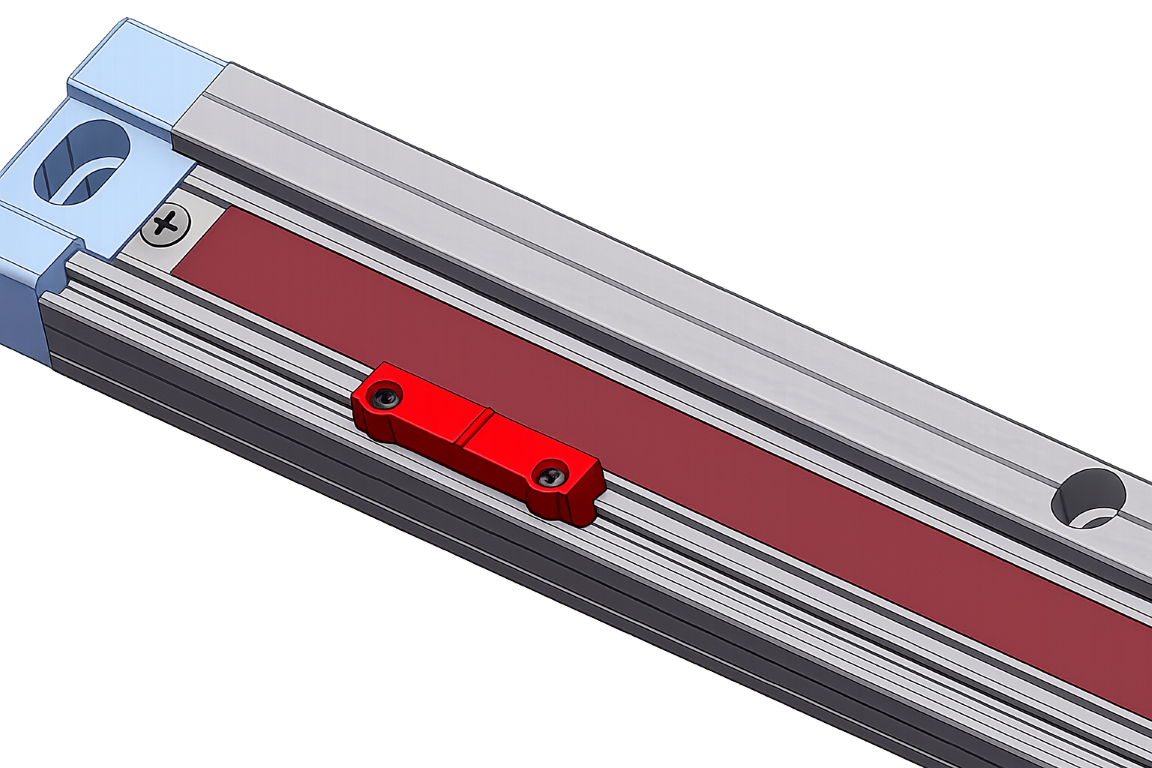

MAGNETIC SCALE - GVS 100

Overview

Scale Housing is anodized aluminium with cross section of 33 x 10 mm.
End caps made of zamak mould: one end cap is designed to hold the tensioning mechanism in case the scale is a modular and other end cap on the fixed side.
Stainless steel protection cover of the magnetic band to protect the band from external environment

Models

GVS 100

GVS 100

ISA 10 Resolution 100 µm	ISA 100 Resolution 10 µm	ISA 5 Resolution 5 µm	ISA W1 Resolution 1 µm
Resolution : 100 µm	Resolution : 10 µm	Resolution : 5 µm	Resolution : 1 µm
Grating pitch : 400 µm	Grating pitch : 40 µm	Grating pitch : 20 µm	Grating pitch : 40 µm
Accuracy grade : ± 10 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm
Max. traversing speed : 120 m/min	Max. traversing speed : 80 m/min	Max. traversing speed : 60 m/min	Max. traversing speed : 25 m/min
Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions
Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL
Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized
Downlod Brochure	Downlod Brochure	Downlod Brochure	Downlod Brochure
