VI900 – Multi-axis digital readout, with touch-screen color LCD, for absolute and incremental systems

Compact-design, modern and functional digital readout, equipped with the new Absolute Warning System (AWS).
AWS constantly guarantees the correctness of the displayed positions and informs the operator of any malfunctioning. The user can continue machining or, based on the error message displayed, intervene to restore the proper functioning of the system.
Absolute (SSI protocol) or incremental encoder input signals.
5.7” touch-screen color, LED-backlit, LCD TFT panel which allows the displaying of up to 4 axes.
USB, Touch Probe, CAN bus and serial RS-232 interfaces.
Resolutions up to 0.1 μm.
Online HELP. Graphic visualization of function execution.
Diagnostic of readout and encoders. Reading of coded reference indexes.
Absolute signals RS-422: Clock+, Clock-, Data+, Data-.
Universal software for any kind of machine tool; updates through serial port. 1000 memory blocks.
Possibility of connection to a digital (up to 8 relay outputs) or analog (constant surface speed) remote board.
Option: flush-mounted version (on a panel).

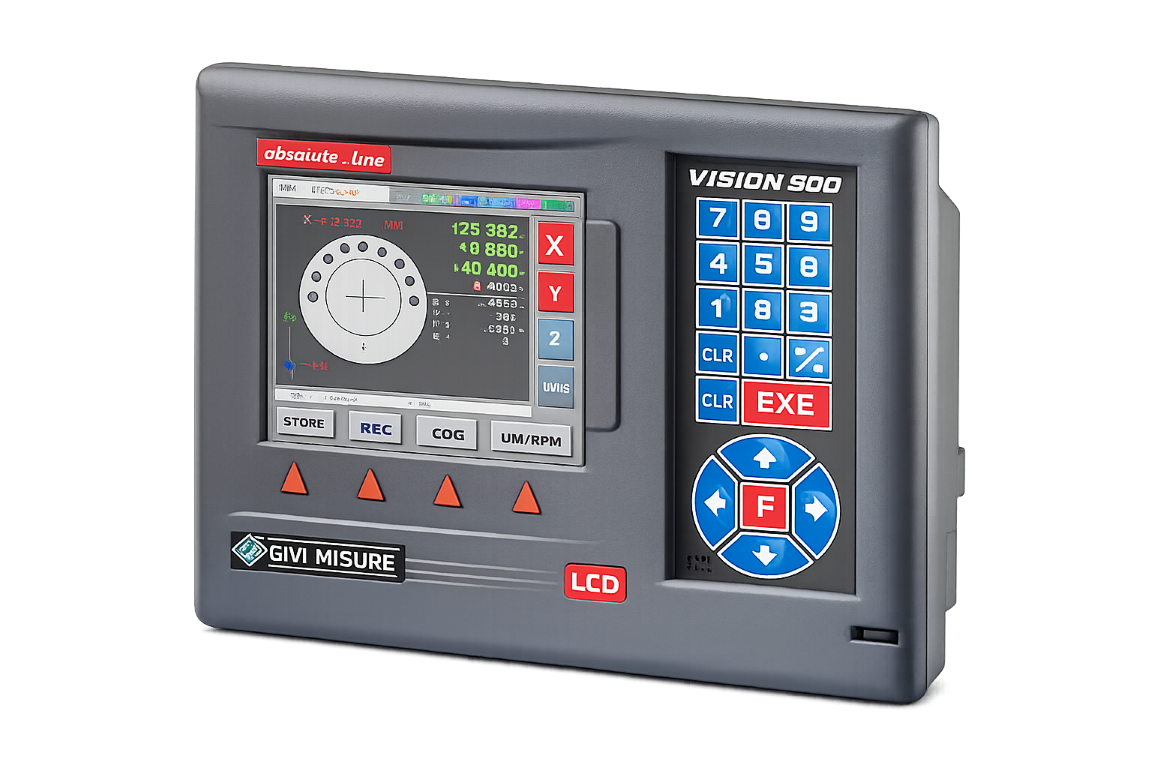

VI900 Touch-screen color LCD display

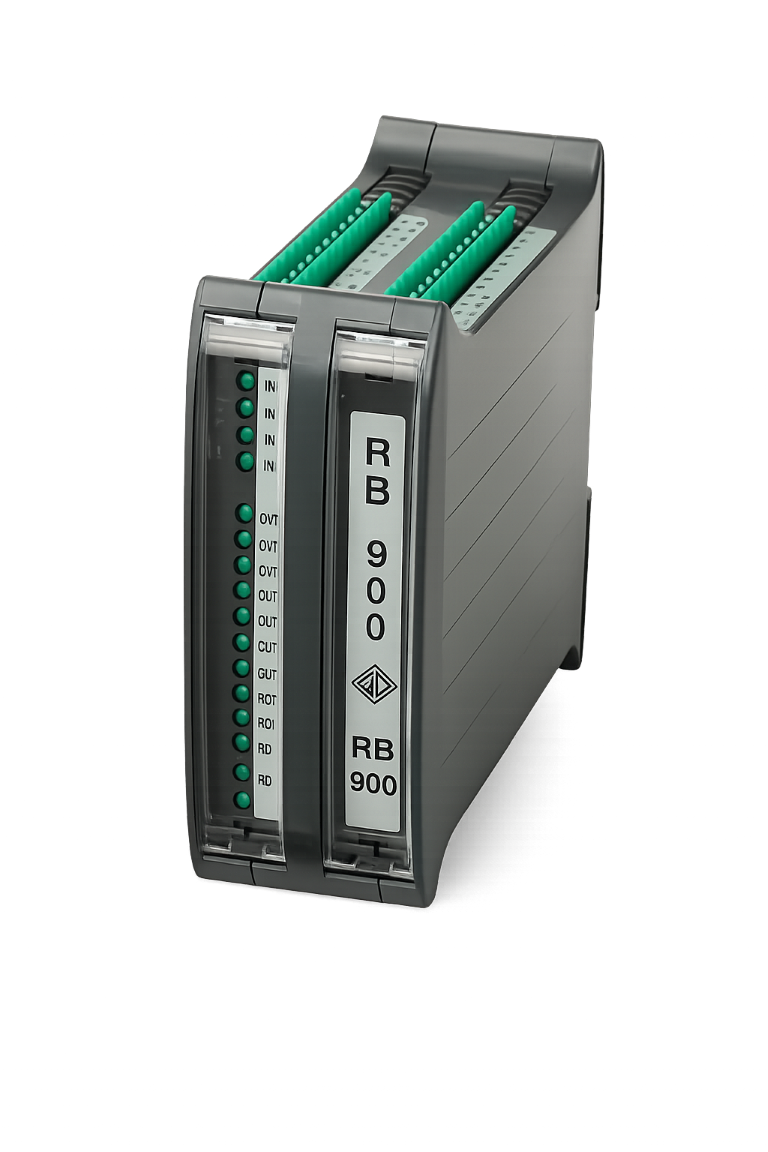

RB900 I/O Digital remote board – Up to 8 relay outputs New

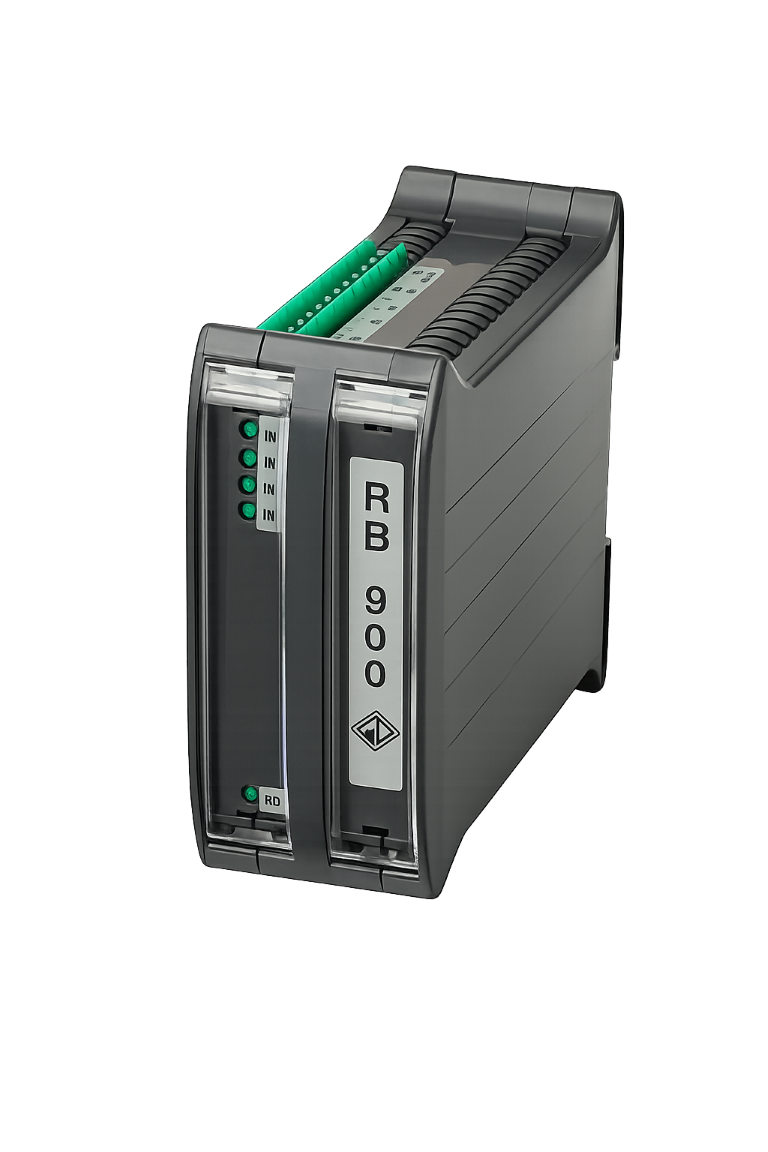

RB900 CSS Analog remote board – Constant surface speed New

VI900 Touch-screen color LCD display

RB900 I/O Digital remote board – Up to 8 relay outputs New

RB900 CSS Analog remote board – Constant surface speed New

ISA 10 Resolution 100 µm	ISA 100 Resolution 10 µm	ISA 5 Resolution 5 µm	ISA W1 Resolution 1 µm
Resolution : 100 µm	Resolution : 10 µm	Resolution : 5 µm	Resolution : 1 µm
Grating pitch : 400 µm	Grating pitch : 40 µm	Grating pitch : 20 µm	Grating pitch : 40 µm
Accuracy grade : ± 10 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm
Max. traversing speed : 120 m/min	Max. traversing speed : 80 m/min	Max. traversing speed : 60 m/min	Max. traversing speed : 25 m/min
Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions
Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL
Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized
Downlod Brochure	Downlod Brochure	Downlod Brochure	Downlod Brochure

The equipments supplied by company, will help end users to improve quality and productivity levels.

Plot No 488, VTPC Export Bhavan,
14th Cross, IV Phase,
Peenya Industrial Area
Bangalore – 560058


Display	5.7” color, LED-backlit LCD TFT
Incremental encoder input signals	2 square waves with phase displacement of 90° ± 5° + synchronized index 5 Vdc
Absolute (SSI) encoder input signals	RS-422: Clock+, Clock-, Data+, Data-
Available resolutions	1,000 – 500 – 200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 – 0.5 – 0.2 – 0.1 μm 1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01° – 0.005° – 0.002° – 0.001°
Protection class	IP 40 IP 54 with plastic cover provided
Input axes	2 – 3 – 4
Applicable to	lathe – milling machine – boring machine – etc.
Power supply	230 Vac ± 10% – 50/60 Hz 60 mAMAX 110 Vac ± 10% – 60 Hz 120 mAMAX 24 Vac ± 10% – 50/60 Hz 500 mAMAX
Version	standard or flush-mounted
Options	CAN interface
Download Brochure ↓


Power supply from VI900	5 Vdc ± 10%
External power supply (PWS)	12 – 24 Vac ± 10% – 50/60 Hz 12 – 24 Vdc ± 10%
Power	1.5 WMAX
Current consumption	240 mAMAX (5 Vdc from VI900) 60 mAMAX (24 Vdc from external power supply PWS)
Inputs	VinHIGH= 4.5 ÷ 30 Vdc VinLOW= 0 ÷ 2 Vdc tMIN= 100 ms optoisolated and independent
Digital outputs	static N.O. relay contacts, 60 Vac/dcMAX, 0.6 AMAX, 0.36 WMAX protected against overload and overcurrent
Connections	D-SUB 15p M (COM1) terminal block 3p M (external power supply PWS) terminal block 12p M (input/output)
Protection class	IP 20
Download Brochure ↓


Power supply from VI900	5 Vdc ± 10%
External power supply (PWS)	12 – 24 Vac ± 10% – 50/60 Hz 12 – 24 Vdc ± 10%
Power	1.5 WMAX
Current consumption	240 mAMAX (5 Vdc from VI900) 60 mAMAX (24 Vdc from external power supply PWS)
Analog output	0 – 10 Vdc
Connections	D-SUB 15p M (COM1) terminal block 3p M (external power supply PWS) terminal block 12p M (input/output)
Protection class	IP 20
