MME - Givi Misure

MME

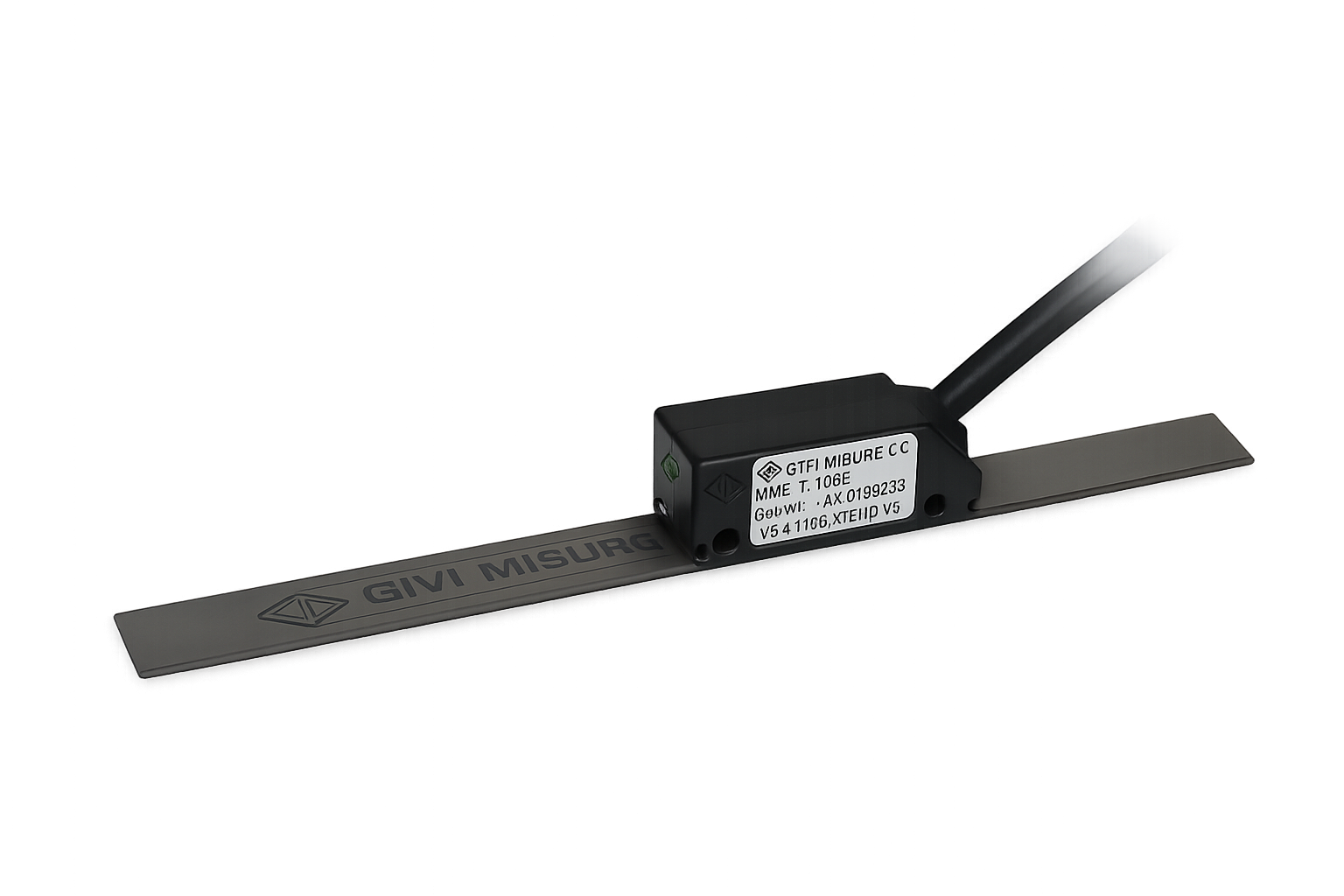

Small-size incremental magnetic sensor with square-wave output

Overview

Magnetic sensor for linear and angular reading.
Very small size (36 mm x 13.5 mm), to allow installation in narrow spaces.
Resolutions up to 0.1 μm. DPI resolution and inches reading available.
Status indication through LED RGBW.
Contactless reading.
Many pole pitches available
Flexible cable that allows the axial or radial output.
Extremely easy and fast mounting of the entire measuring system, with wide alignment tolerances.
Option: cleaning wipers to remove dirt deposits from the magnetic band, ensuring the correct functioning of the system.
Magnetic band composed by a magnetized plastoferrite tape. The plastoferrite is supported by a stainless steel tape, already provided with the adhesive tape, for an easy application on the machine.
Reference indexes at constant step or in required positions.
Magnetic sensor body made of die-cast metallic material.
Insensitive to dust and liquids (IP 67 protection class).
Protected against inversion of power supply polarity and short circuits on output ports. Brochure

Models

MME P

MME M

MME I

MME H

MME P

MME M

MME I

MME H
