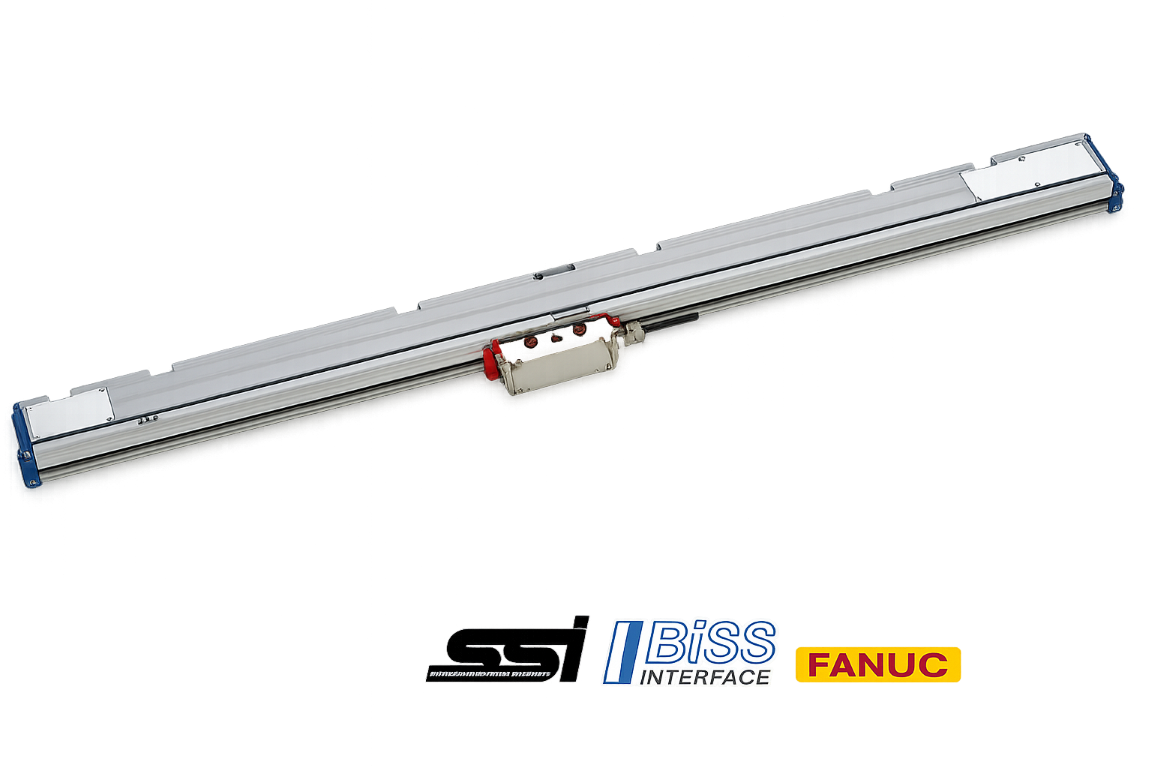

GVS 919
Absolute magnetic encoder for large machines
Overview
Absolute magnetic encoder, available in a single piece or in modular version for large machines (up to 30040 mm of measuring length).
Application in various industrial fields such as machine tools, vertical lathes, gantry machines, laser/plasma cutting machines, robotics, automation, etc.
Magnetic band on stainless steel support, integral with the machine guide, for an excellent accuracy at any temperature.
Serial interface SSI – BiSS C (unidirectional), with or without 1 Vpp analog signal and FANUC α-αi. Direct reading of absolute measure.
Resolutions up to 0.5 μm. Accuracy grade ± 10 μm.
Rigidly bound modules, for a perfect seal against liquids and environmental dirty, unaltered over time.
Adjustable cable output, through double connector.
Wide alignment tolerances.
Pressurization from both sides of the scale and/or of the transducer.
