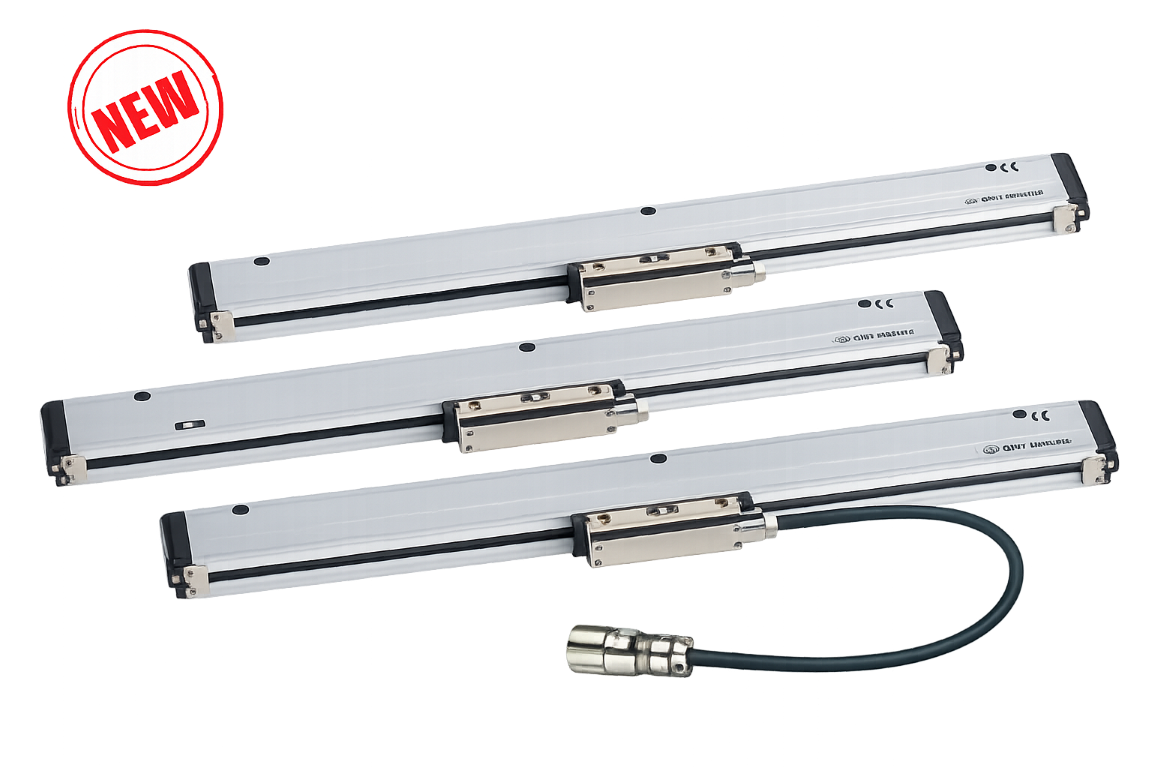

INCREMENTAL OPTICAL SCALES FOR CNC APPLICATIONS - GVS 600

Optical scale with glass measuring support, particularly suitable for CNC machine tools.
Non-extendible sealing lips, along the sliding side of the reader head, fixed at the lateral ends.
Innovative device inside the scale for the disposal of liquids coming from inefficient filtering systems.
The special sealing lips and the device for the liquids disposal provide an excellent protection of the grating from refrigerant liquids often used during machining.
Metrological certificate provided with each scale
Power supply 5 Vdc +1-5%

GVS 600 T05

GVS 600 Tl

GVS 600 T5

GVS 600 V Sine wave output

GVS 600 T05

GVS 600 Tl

GVS 600 T5

GVS 600 V Sine wave output

ISA 10 Resolution 100 µm	ISA 100 Resolution 10 µm	ISA 5 Resolution 5 µm	ISA W1 Resolution 1 µm
Resolution : 100 µm	Resolution : 10 µm	Resolution : 5 µm	Resolution : 1 µm
Grating pitch : 400 µm	Grating pitch : 40 µm	Grating pitch : 20 µm	Grating pitch : 40 µm
Accuracy grade : ± 10 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm
Max. traversing speed : 120 m/min	Max. traversing speed : 80 m/min	Max. traversing speed : 60 m/min	Max. traversing speed : 25 m/min
Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions
Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL
Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized
Downlod Brochure	Downlod Brochure	Downlod Brochure	Downlod Brochure

The equipments supplied by company, will help end users to improve quality and productivity levels.

Plot No 488, VTPC Export Bhavan,
14th Cross, IV Phase,
Peenya Industrial Area
Bangalore – 560058

Resolution	0.5 µm
Grating pitch	20µm
Accuracy grade	±3 µm standard ± 1 pm high -accuracy
Max. traversing speed	120 m/min
Measuring length	from 70 up to 3,240 mm
Reference indexes	coded distance / constant step / selectable
Output signals	LINE DRIVER / PUSH -PUL
Protection class	IP 54 standard IP 64 pressurized
Download Brochure ↓

Resolution	up to 0.01 µm
Grating pitch	20µm
Accuracy grade	±3 µm standard ± 1 pm high -accuracy
Max. traversing speed	120 m/min
Measuring length	from 70 up to 3,240 mm
Reference indexes	coded distance / constant step / selectable
Output signals	LINE DRIVER / PUSH -PUL
Protection class	IP 54 standard IP 64 pressurized
Download Brochure ↓

Resolution	1 µm
Grating pitch	20µm
Accuracy grade	±3 µm standard ± 1 pm high -accuracy
Max. traversing speed	120 m/min
Measuring length	from 70 up to 3,240 mm
Reference indexes	coded distance / constant step / selectable
Output signals	LINE DRIVER / PUSH -PUL
Protection class	IP 54 standard IP 64 pressurized
Download Brochure ↓

Resolution	5 µm
Grating pitch	20µm
Accuracy grade	±3 µm standard ± 1 pm high -accuracy
Max. traversing speed	120 m/min
Measuring length	from 70 up to 3,240 mm
Reference indexes	coded distance / constant step / selectable
Output signals	LINE DRIVER / PUSH -PUL
Protection class	IP 54 standard IP 64 pressurized
Download Brochure ↓
