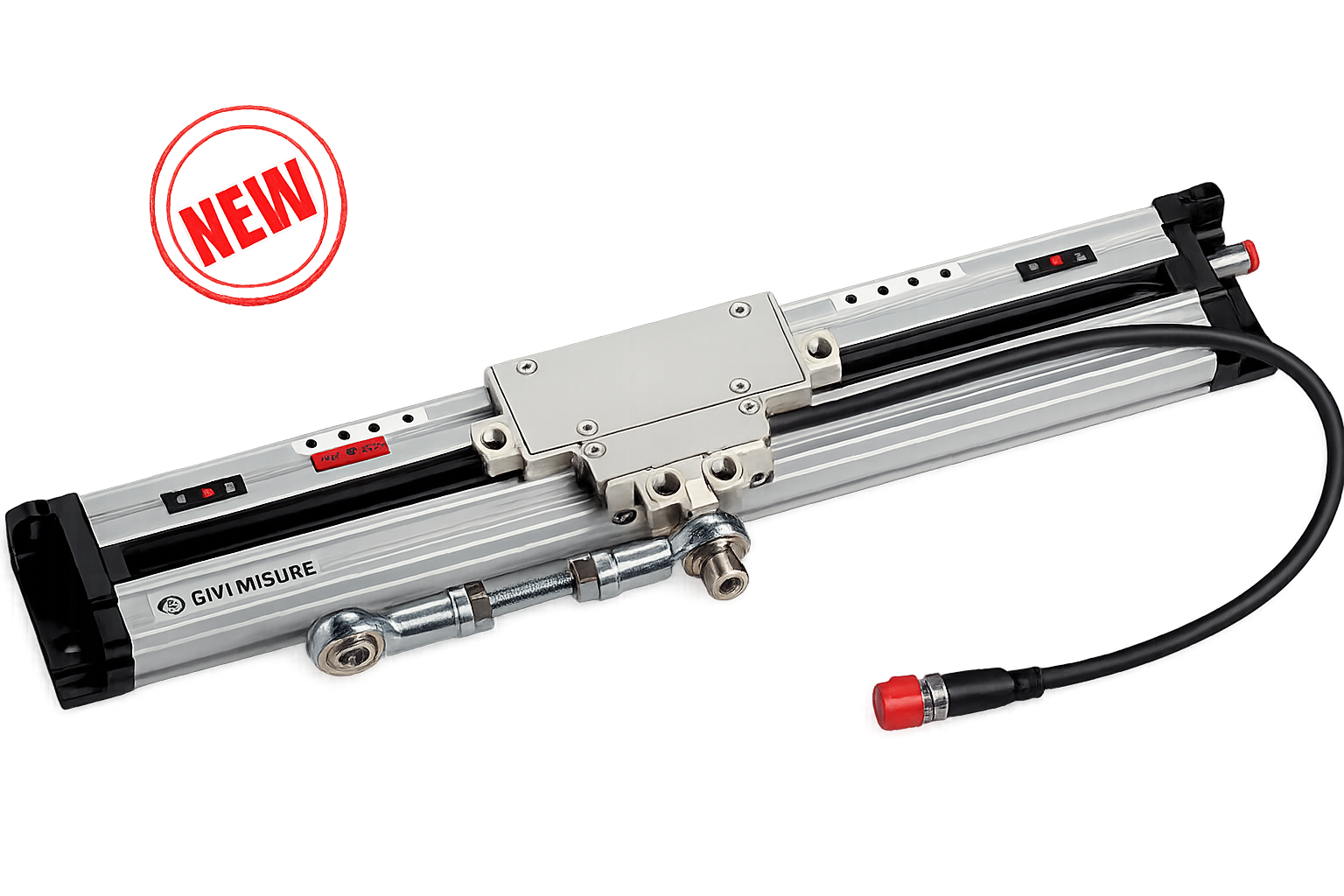

OPTICAL INCREMENTAL SCALE GVS 202S

Overview

Optical incremental scale . Particularly suitable for applications on synchronized press brakes.
Reader head guided by a self-aligned and self-cleaning sliding carriage with spring system.
Reference indexes at coded distance or selectable every 10 along th entire measuring length, with Zero Magneto Set device.
The adjustable cable output and the selectable zero references make the scale SYMMETRIC and applicable to both columns of the press brake.

Models

GVS 202S

GVS 202S

ISA 10 Resolution 100 µm	ISA 100 Resolution 10 µm	ISA 5 Resolution 5 µm	ISA W1 Resolution 1 µm
Resolution : 100 µm	Resolution : 10 µm	Resolution : 5 µm	Resolution : 1 µm
Grating pitch : 400 µm	Grating pitch : 40 µm	Grating pitch : 20 µm	Grating pitch : 40 µm
Accuracy grade : ± 10 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm
Max. traversing speed : 120 m/min	Max. traversing speed : 80 m/min	Max. traversing speed : 60 m/min	Max. traversing speed : 25 m/min
Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions
Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL
Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized
Downlod Brochure	Downlod Brochure	Downlod Brochure	Downlod Brochure
