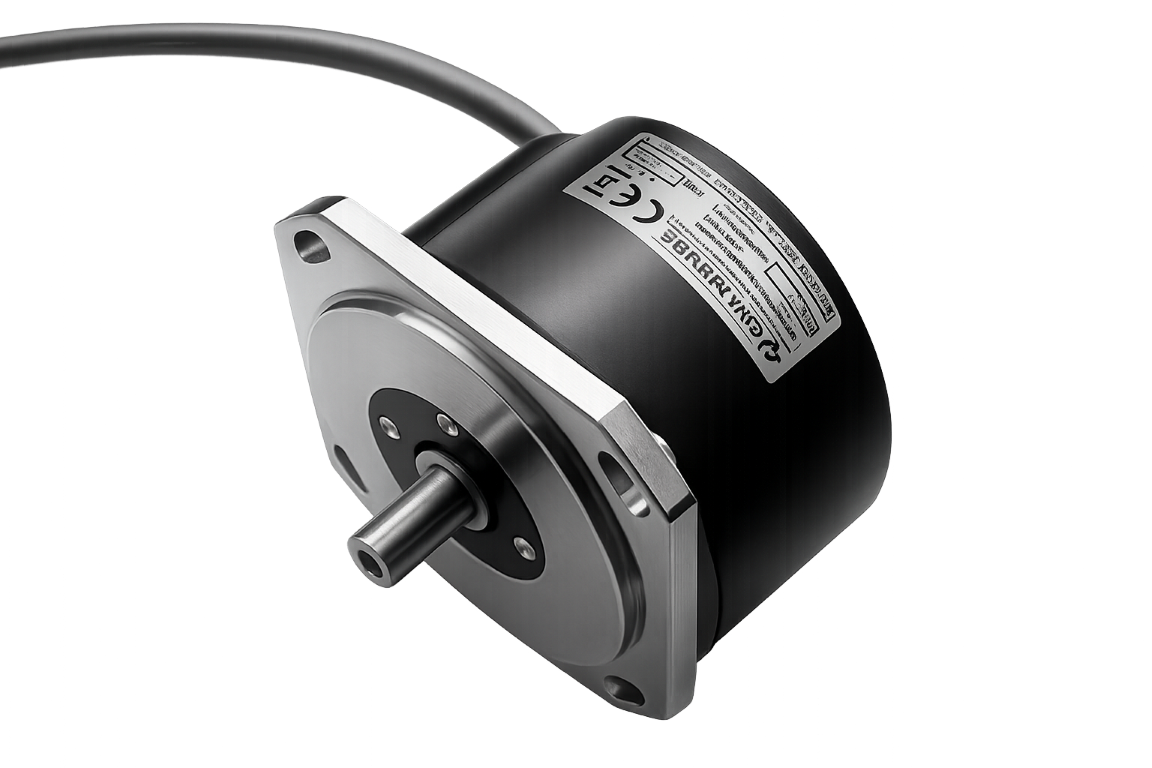

ROTARY ENCODERS-EN90

Overview

MODELS

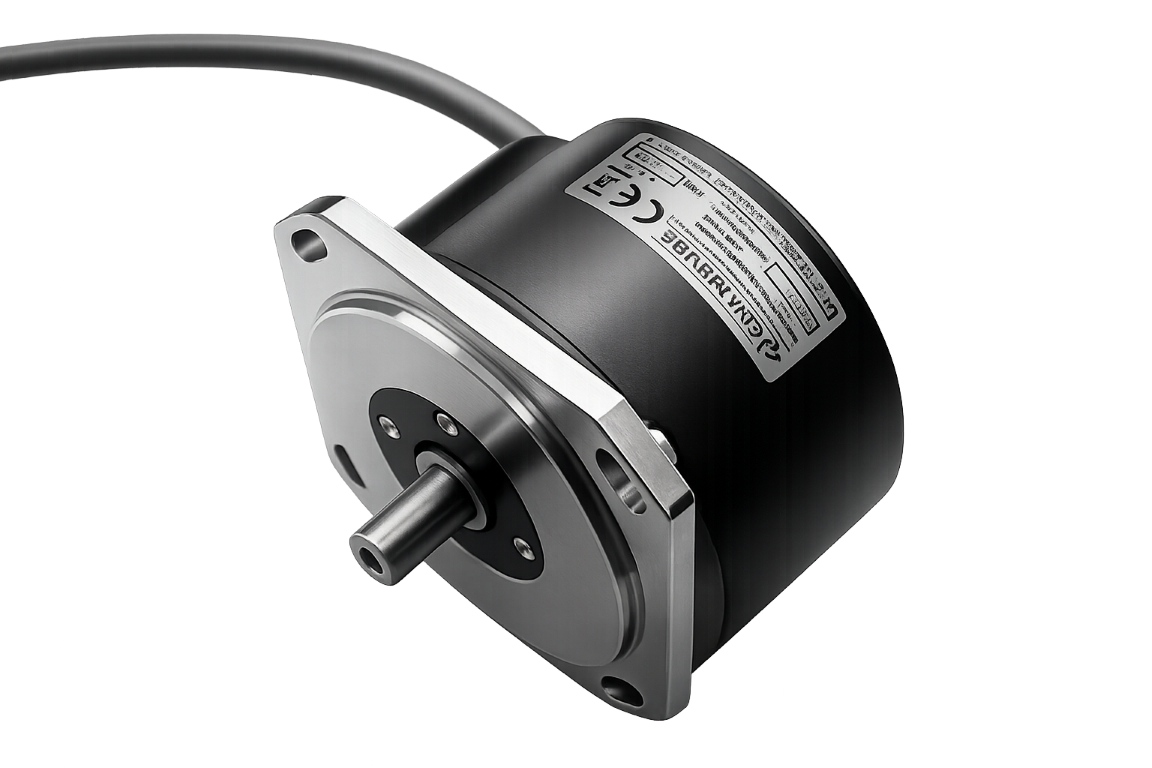

EN90

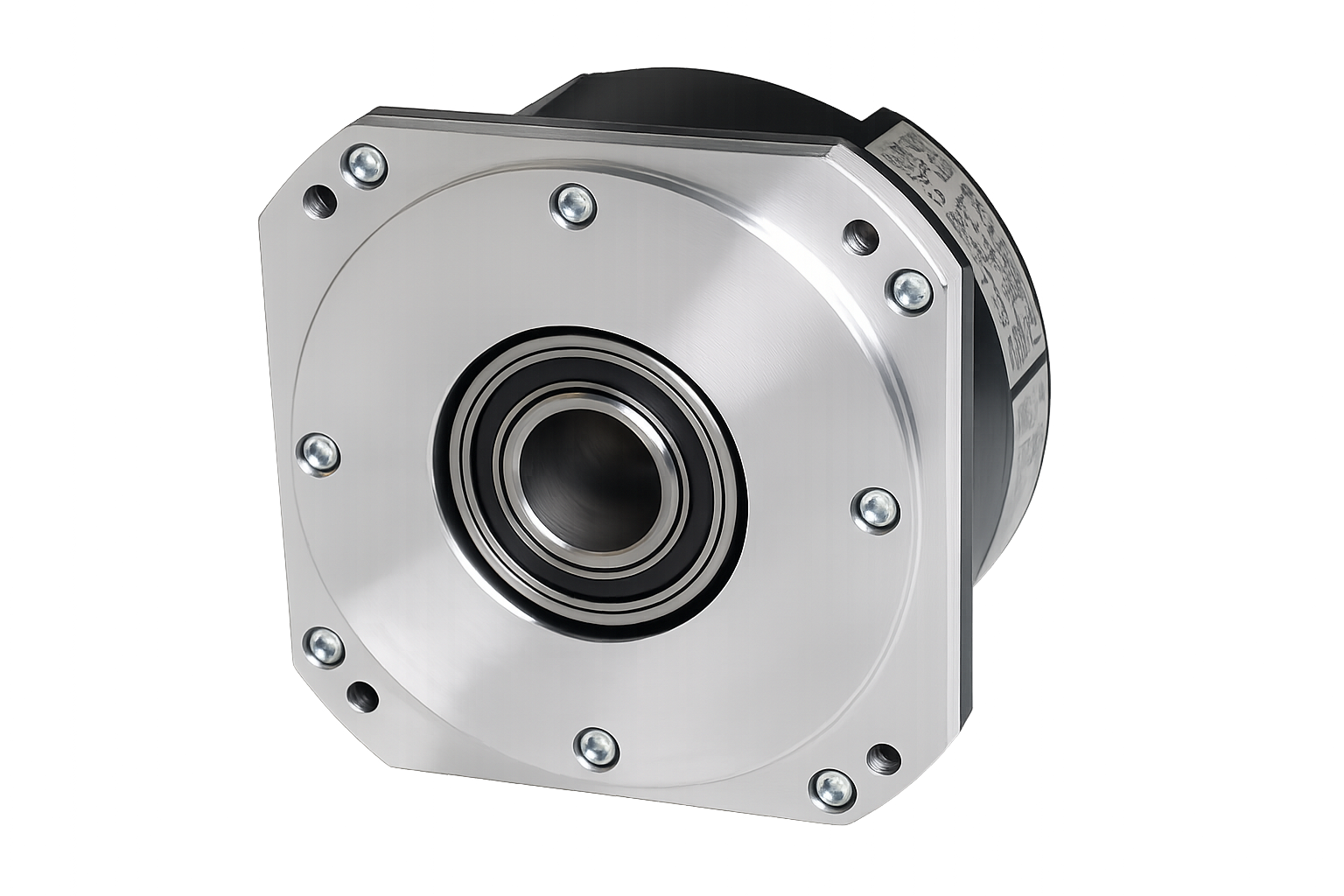

EN90C

EN90

EN90C

ISA 10 Resolution 100 µm	ISA 100 Resolution 10 µm	ISA 5 Resolution 5 µm	ISA W1 Resolution 1 µm
Resolution : 100 µm	Resolution : 10 µm	Resolution : 5 µm	Resolution : 1 µm
Grating pitch : 400 µm	Grating pitch : 40 µm	Grating pitch : 20 µm	Grating pitch : 40 µm
Accuracy grade : ± 10 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm	Accuracy grade : ± 5 µm
Max. traversing speed : 120 m/min	Max. traversing speed : 80 m/min	Max. traversing speed : 60 m/min	Max. traversing speed : 25 m/min
Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions	Reference indexes : in required positions
Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL	Output signals : NPN / LINE DRIVER / PUSH-PULL
Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized	Protection class : IP 53 standard IP 64 pressurized
Downlod Brochure	Downlod Brochure	Downlod Brochure	Downlod Brochure

The equipments supplied by company, will help end users to improve quality and productivity levels.
