ROTARY ENCODERS

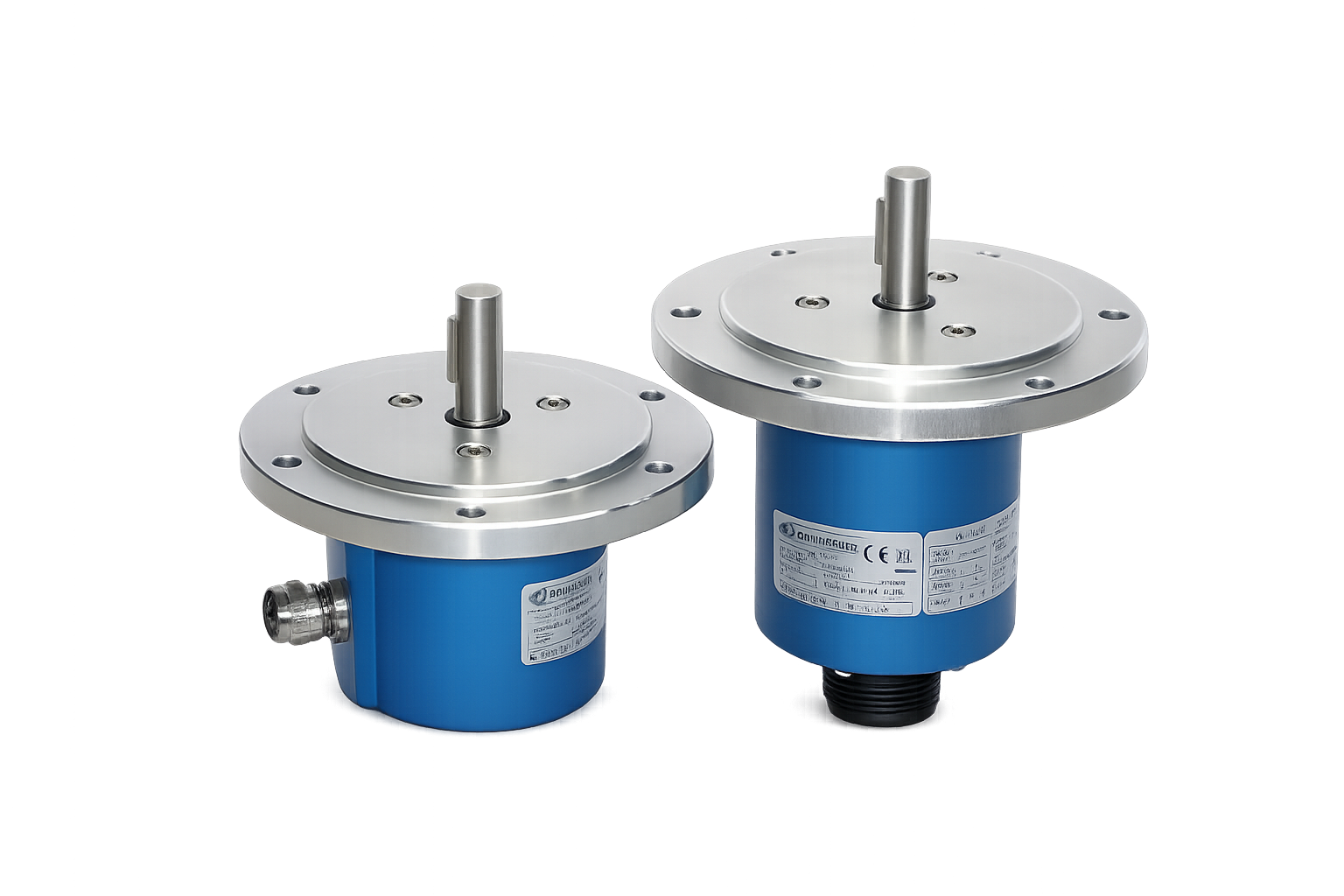

EN58 – Incremental encoder Ø 58 mm

Incremental rotary encoder, based on optical principle.
Small overall dimensions for applications with limited installation space.
Wide range of pulses per revolution up to 64,000 ppr.
Bidirectional signals with zero references, TTL or 1 Vpp sine wave.
Output by connector or cable, radial or axial position.
Aluminium flange and body.
High-protection ring.
High accuracy and stability of signals.
Protected against inversion of power supply polarity and short circuits on output ports.
Wide range of features.
Custom-made features on request.

Available pulses	5 ÷ 64,000 ppr
Max. rotating speed	momentary 12,000 rpm continuous 8,000 rpm
Centering Ø	36 mm
Fixing	no. 3 screws M4 at 120° or elastic flange
shaft Ømm	6 – 8 – 9.52 – 10 – 12 – 14 – 15 others on request
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65
Output signals	LINE DRIVER / PUSH-PULL OPEN COLLECTOR
Max. frequency	300 kHz
Download Brochure

Available pulses	5 ÷ 64,000 ppr
Max. rotating speed	momentary 12,000 rpm continuous 8,000 rpm
Centering Ø	50 mm
Fixing	no. 3 screws M4 at 120°
shaft Ømm	6×10 – 8×20 – 9.52×20 – 10×20 others on request
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL OPEN COLLECTOR sine wave 1 Vpp
Max. frequency	300 kHz
Download Brochure

Available pulses	5 ÷ 64,000 ppr
Max. rotating speed	momentary 12,000 rpm continuous 8,000 rpm
Centering Ø	85 mm
Fixing	no. 6 holes Ø 6.6 mm
shaft Ømm	11×30
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL OPEN COLLECTOR
Max. frequency	300 kHz
Download Brochure

Available pulses	5 ÷ 64,000 ppr
Max. rotating speed	momentary 12,000 rpm continuous 8,000 rpm
Centering Ø	80 mm
Fixing	no. 3 screws M5 at 120°
shaft Ømm	8×20 – 9.52×20 – 10×20 others on request
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL OPEN COLLECTOR
Max. frequency	300 kHz
Download Brochure

Available pulses	5 ÷ 64,000 ppr
Max. rotating speed	momentary 12,000 rpm continuous 8,000 rpm
Centering Ø	31.75 mm
Fixing	no. 4 holes Ø 5.5 mm
shaft Ømm	6×10 – 8×20 – 9.52×20 – 10×20 others on request
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL OPEN COLLECTOR
Max. frequency	300 kHz
Download Brochure

Available pulses	5 ÷ 64,000 ppr
Max. rotating speed	momentary 12,000 rpm continuous 8,000 rpm
Centering Ø	31.75 mm
Fixing	no. 3 screws M5 at 120°
shaft Ømm	6×10 – 8×20 – 9.52×20 – 10×20 others on request
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL OPEN COLLECTOR
Max. frequency	300 kHz
Download Brochure

Available pulses	5 ÷ 64,000 ppr
Max. rotating speed	momentary 12,000 rpm continuous 8,000 rpm
Centering Ø	36 mm
Fixing	no. 3 screws M3 at 120°
shaft Ømm	6×10 – 8×20 – 9.52×20 – 10×20 others on request
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL OPEN COLLECTOR sine wave 1 Vpp
Max. frequency	300 kHz
Download Brochure

Available pulses	5 ÷ 64,000 ppr
Max. rotating speed	momentary 12,000 rpm continuous 8,000 rpm
Centering Ø	50 mm
Fixing	no. 3 screws M5 at 120°
shaft Ømm	6×10 – 8×20 – 9.52×20 – 10×20 others on request
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL OPEN COLLECTOR
Max. frequency	300 kHz
Download Brochure

Available pulses	5 ÷ 64,000 ppr
Max. rotating speed	momentary 12,000 rpm continuous 8,000 rpm
Centering Ø	50 mm
Fixing	no. 4 holes Ø 5.5 mm
shaft Ømm	6×10 – 8×20 – 9.52×20 – 10×20 others on request
Power supply	5 ÷ 28 V ± 5%
Protection class	IP 65 standard IP 67 optional
Output signals	LINE DRIVER / PUSH-PULL OPEN COLLECTOR
Max. frequency	300 kHz
Download Brochure
