| Available pulses | 2,048 ppr |
| Max. rotating speed | momentary 15,000 rpm continuous 12,000 rpm |
| Fixing | with elastic flange |

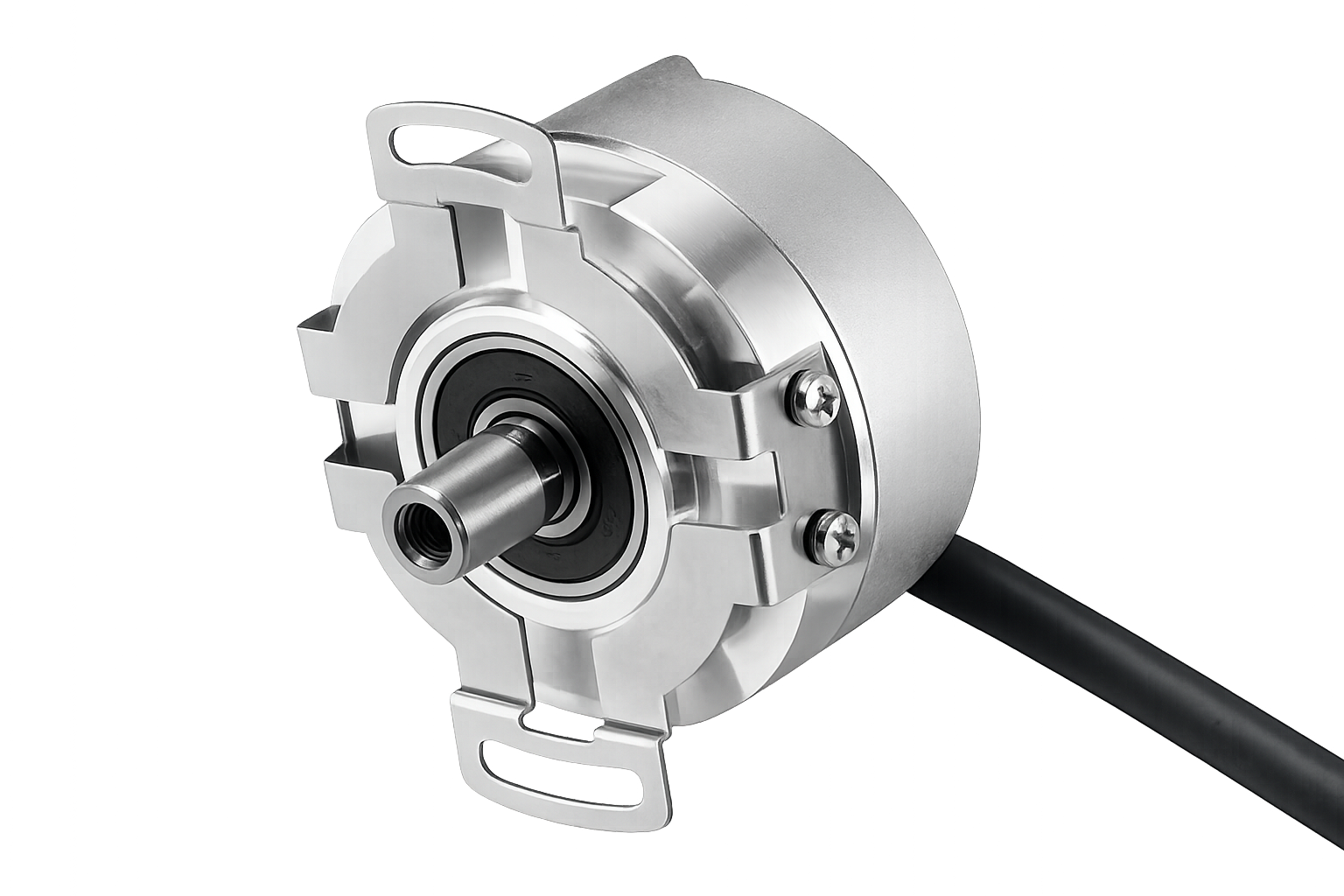

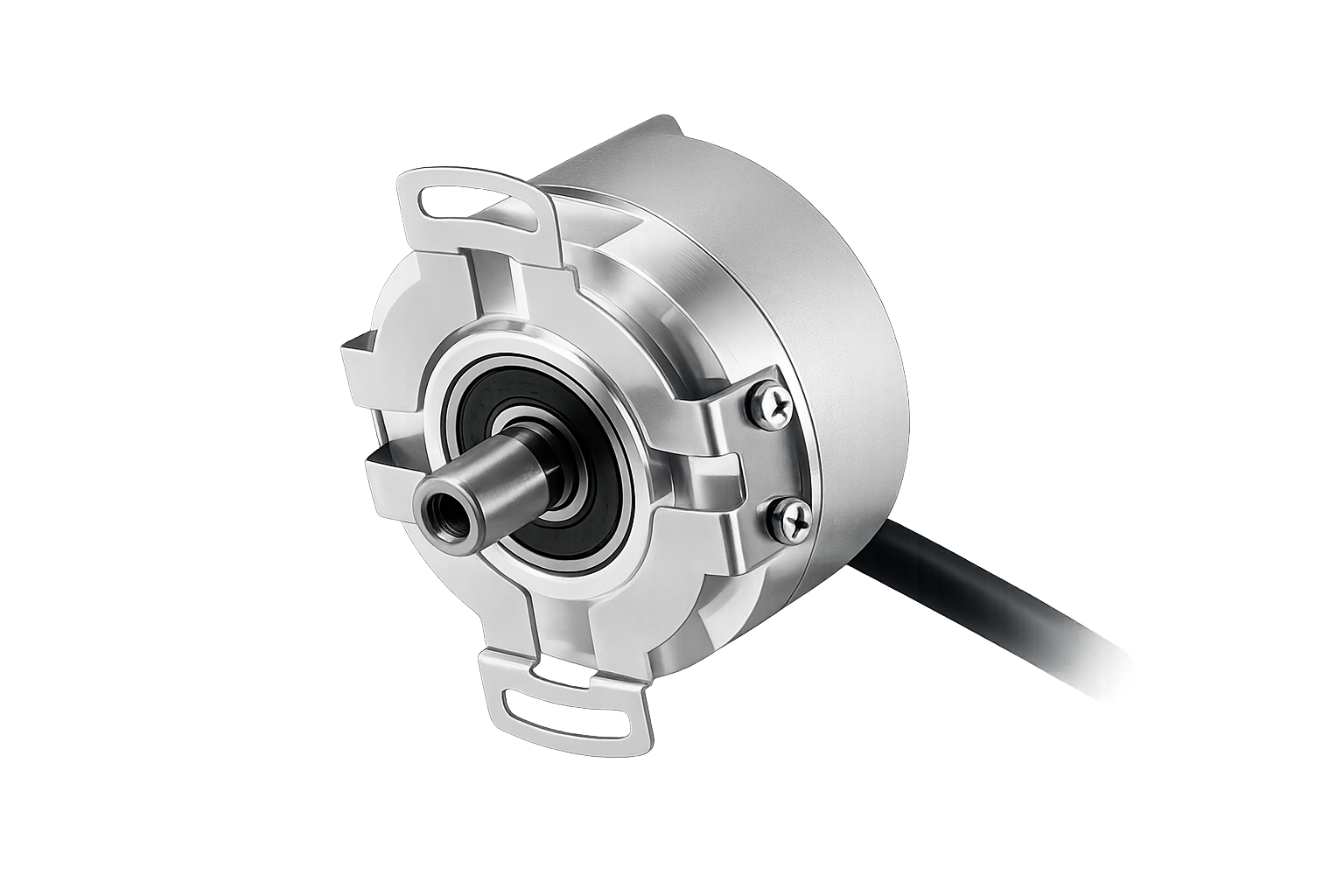

| shaft Ømm | tapered solid shaft Ø 10 (10/1) |
| Power supply | 5 V ± 10% |
| Protection class | IP 40 |
| Output signals | sine wave 1 Vpp |
| Max. frequency | 500 kHz |
| Download Brochure ↓ | |
 | |
| Available pulses | 2,048 ppr |
| Max. rotating speed | momentary 15,000 rpm continuous 12,000 rpm |
| Fixing | with elastic flange |

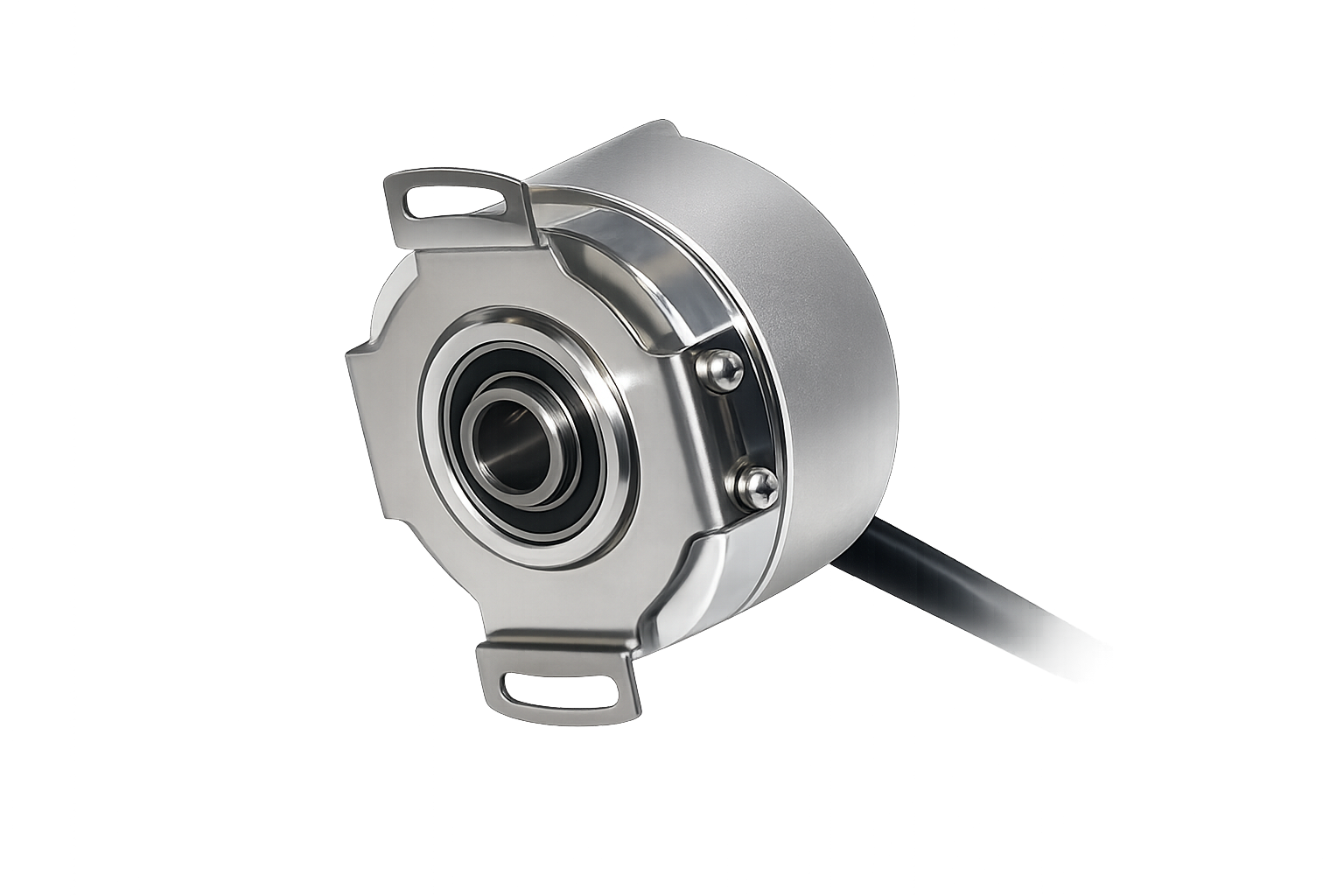

| shaft Ømm | tapered semi-hollow shaft Ø 10 (10/1) semi-hollow shaft Ø 12.7 |
| Power supply | 5 V ± 10% |
| Protection class | IP 40 |
| Output signals | sine wave 1 Vpp |
| Max. frequency | 500 kHz |
| Download Brochure ↓ | |
|
ISA 10 Resolution 100 µm
|
ISA 100 Resolution 10 µm
|
ISA 5 Resolution 5 µm
|
ISA W1 Resolution 1 µm
|
|---|---|---|---|
|
Resolution : 100 µm
|
Resolution : 10 µm
|
Resolution : 5 µm
|
Resolution : 1 µm
|
|
Grating pitch : 400 µm
|
Grating pitch : 40 µm
|
Grating pitch : 20 µm
|
Grating pitch : 40 µm
|
|
Accuracy grade : ± 10 µm
|
Accuracy grade : ± 5 µm
|
Accuracy grade : ± 5 µm
|
Accuracy grade : ± 5 µm
|
|
Max. traversing speed : 120 m/min
|
Max. traversing speed : 80 m/min
|
Max. traversing speed : 60 m/min
|
Max. traversing speed : 25 m/min
|
|
Reference indexes : in required positions
|
Reference indexes : in required positions
|
Reference indexes : in required positions
|
Reference indexes : in required positions
|
|
Output signals : NPN / LINE DRIVER / PUSH-PULL
|
Output signals : NPN / LINE DRIVER / PUSH-PULL
|
Output signals : NPN / LINE DRIVER / PUSH-PULL
|
Output signals : NPN / LINE DRIVER / PUSH-PULL
|
|
Protection class : IP 53 standard IP 64 pressurized
|
Protection class : IP 53 standard IP 64 pressurized
|
Protection class : IP 53 standard IP 64 pressurized
|
Protection class : IP 53 standard IP 64 pressurized
|
