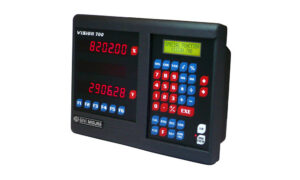

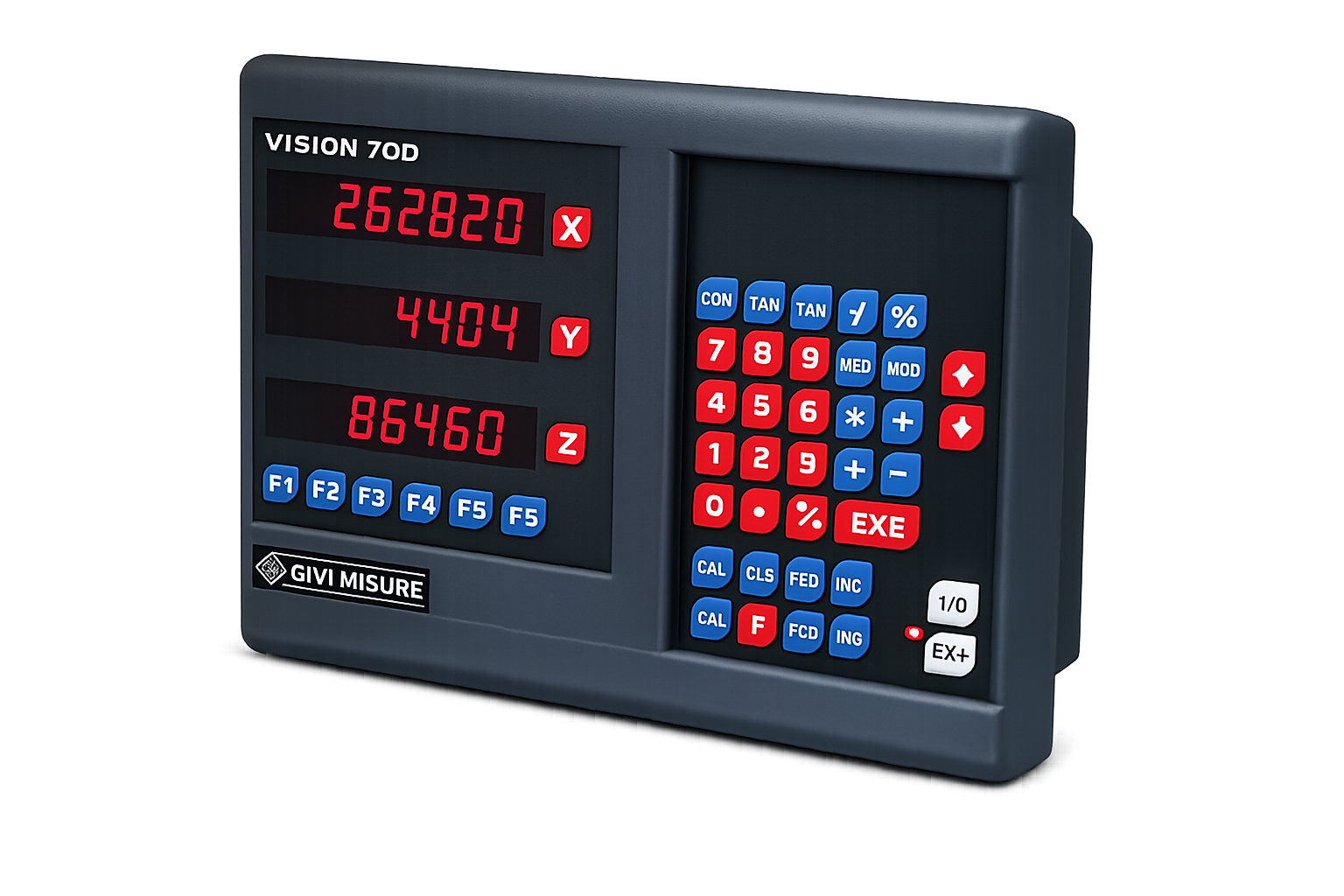

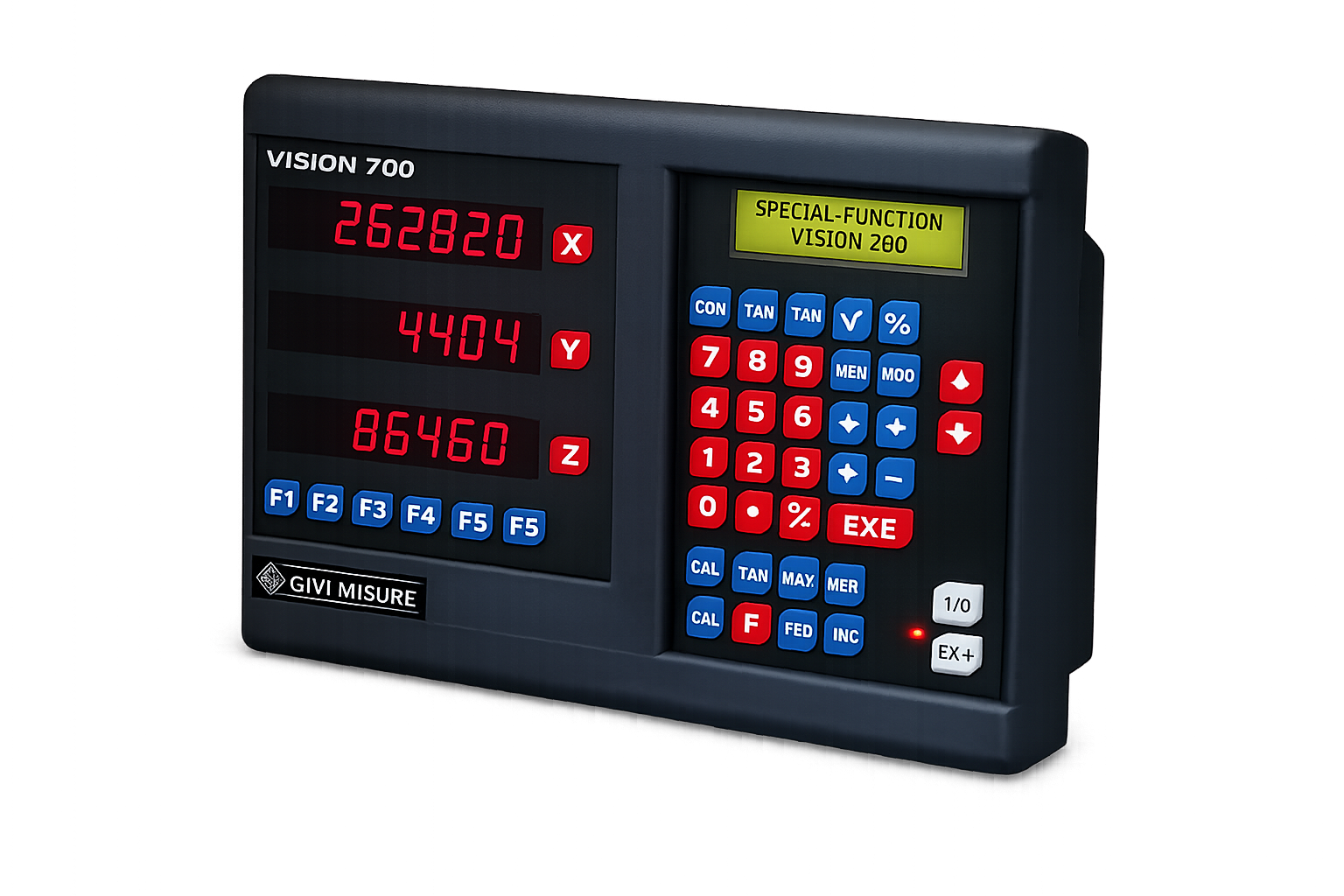

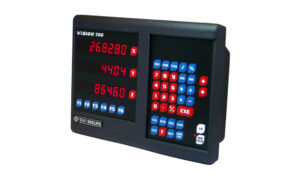

| Display | 7 high-efficiency digits h = 17 mm |
| Encoder input signals | 2 square waves with phase displacement of 90° ± 5° and zero ref. 5 Vdc or 12 Vdc |
| Available resolutions | 200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 – 0.5 μm 1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01° 0.005° – 0.002° – 0.001° |
| Protection class | keyboard IP 67 rear panel IP 42 |
| Input axes | 2 – 3 |
| Applicable to | lathe – milling machine – boring machine – etc. |
| Power supply | 230 Vac ± 10% – 50/60 Hz 50 mA 110 Vac ± 10% – 60 Hz 100 mA 24 Vac ± 10% – 50/60 Hz 450 mA |
| Version | standard or flush-mounted |
| Download Brochure ↓ | |
 | |
| Display | 7 high-efficiency digits h = 17 mm |
| Encoder input signals | 2 square waves with phase displacement of 90° ± 5° and zero ref. 5 Vdc or 12 Vdc |
| Available resolutions | 200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 – 0.5 μm 1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01° 0.005° – 0.002° – 0.001° |
| Protection class | keyboard IP 67 rear panel IP 42 |
| Input axes | 2 – 3 |
| Applicable to | lathe – milling machine – boring machine – etc. |
| Power supply | 230 Vac ± 10% – 50/60 Hz 50 mA 110 Vac ± 10% – 60 Hz 100 mA 24 Vac ± 10% – 50/60 Hz 450 mA |
| Version | standard or flush-mounted |
| Download Brochure ↓ | |
 | |
| Display | 7 high-efficiency digits h = 17 mm |
| Encoder input signals | 2 square waves with phase displacement of 90° ± 5° and zero ref. 5 Vdc or 12 Vdc |
| Available resolutions | 200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 – 0.5 μm 1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01° 0.005° – 0.002° – 0.001° |
| Protection class | keyboard IP 67 rear panel IP 42 |
| Input axes | 3 – 4 |
| Applicable to | lathe – milling machine – boring machine – etc. |
| Power supply | 230 Vac ± 10% – 50/60 Hz 50 mA 110 Vac ± 10% – 60 Hz 100 mA 24 Vac ± 10% – 50/60 Hz 450 mA |
| Version | standard or flush-mounted |
| Download Brochure ↓ | |
 | |
| Display | 7 high-efficiency digits h = 17 mm |
| Encoder input signals | 2 square waves with phase displacement of 90° ± 5° and zero ref. 5 Vdc or 12 Vdc |
| Available resolutions | 200 – 100 – 50 – 20 – 10 – 5 – 2 – 1 – 0.5 μm 1° – 0.5° – 0.2° – 0.1° – 0.05° – 0.02° – 0.01° 0.005° – 0.002° – 0.001° |
| Protection class | keyboard IP 67 rear panel IP 42 |
| Input axes | 3 – 4 |
| Applicable to | lathe – milling machine – boring machine – etc. |
| Power supply | 230 Vac ± 10% – 50/60 Hz 50 mA 110 Vac ± 10% – 60 Hz 100 mA 24 Vac ± 10% – 50/60 Hz 450 mA |
| Version | standard or flush-mounted |
| Download Brochure ↓ | |
|
ISA 10 Resolution 100 µm
|
ISA 100 Resolution 10 µm
|
ISA 5 Resolution 5 µm
|
ISA W1 Resolution 1 µm
|
|---|---|---|---|
|
Resolution : 100 µm
|
Resolution : 10 µm
|
Resolution : 5 µm
|
Resolution : 1 µm
|
|
Grating pitch : 400 µm
|
Grating pitch : 40 µm
|
Grating pitch : 20 µm
|
Grating pitch : 40 µm
|
|
Accuracy grade : ± 10 µm
|
Accuracy grade : ± 5 µm
|
Accuracy grade : ± 5 µm
|
Accuracy grade : ± 5 µm
|
|
Max. traversing speed : 120 m/min
|
Max. traversing speed : 80 m/min
|
Max. traversing speed : 60 m/min
|
Max. traversing speed : 25 m/min
|
|
Reference indexes : in required positions
|
Reference indexes : in required positions
|
Reference indexes : in required positions
|
Reference indexes : in required positions
|
|
Output signals : NPN / LINE DRIVER / PUSH-PULL
|
Output signals : NPN / LINE DRIVER / PUSH-PULL
|
Output signals : NPN / LINE DRIVER / PUSH-PULL
|
Output signals : NPN / LINE DRIVER / PUSH-PULL
|
|
Protection class : IP 53 standard IP 64 pressurized
|
Protection class : IP 53 standard IP 64 pressurized
|
Protection class : IP 53 standard IP 64 pressurized
|
Protection class : IP 53 standard IP 64 pressurized
|
