GVS 915

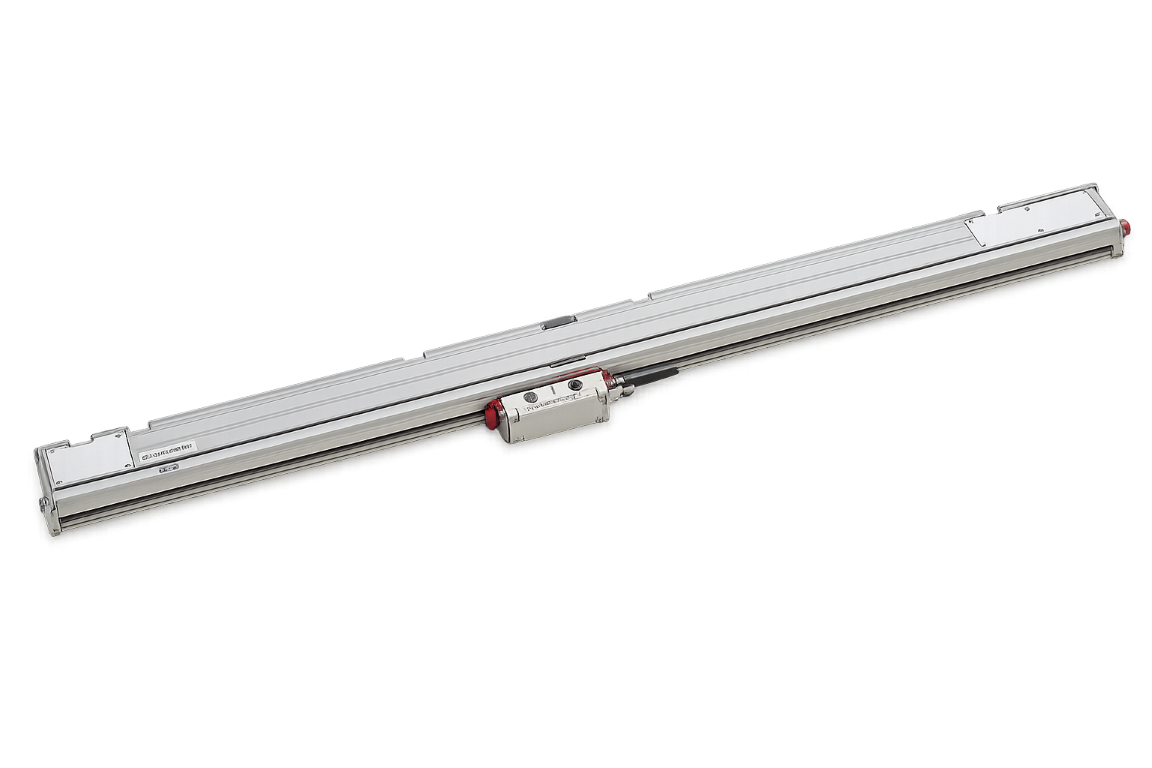

Incremental magnetic encoder for large machines
Overview
Incremental magnetic encoder, available in a single piece or in modular version for large machines (up to 30040 mm of measuring length or higher on request).
Application in various industrial fields such as machine tools, vertical lathes, gantry machines, laser/plasma cutting machines, robotics, automation, etc.
Magnetic band on stainless steel support, integral with the machine guide, for an excellent accuracy at any temperature.
Resolutions up to 0.5 μm. Accuracy grade ± 10 μm.
Rigidly bound modules, for a perfect seal against liquids and environmental dirty, unaltered over time.
Reference indexes at coded distance, at constant step, or selectable every 50 mm along the entire measuring length, with Zero Magneto Set device.
Adjustable cable output, through double connector.
Wide alignment tolerances.
Pressurization from both sides of the scale and/or of the transducer. Brochure
