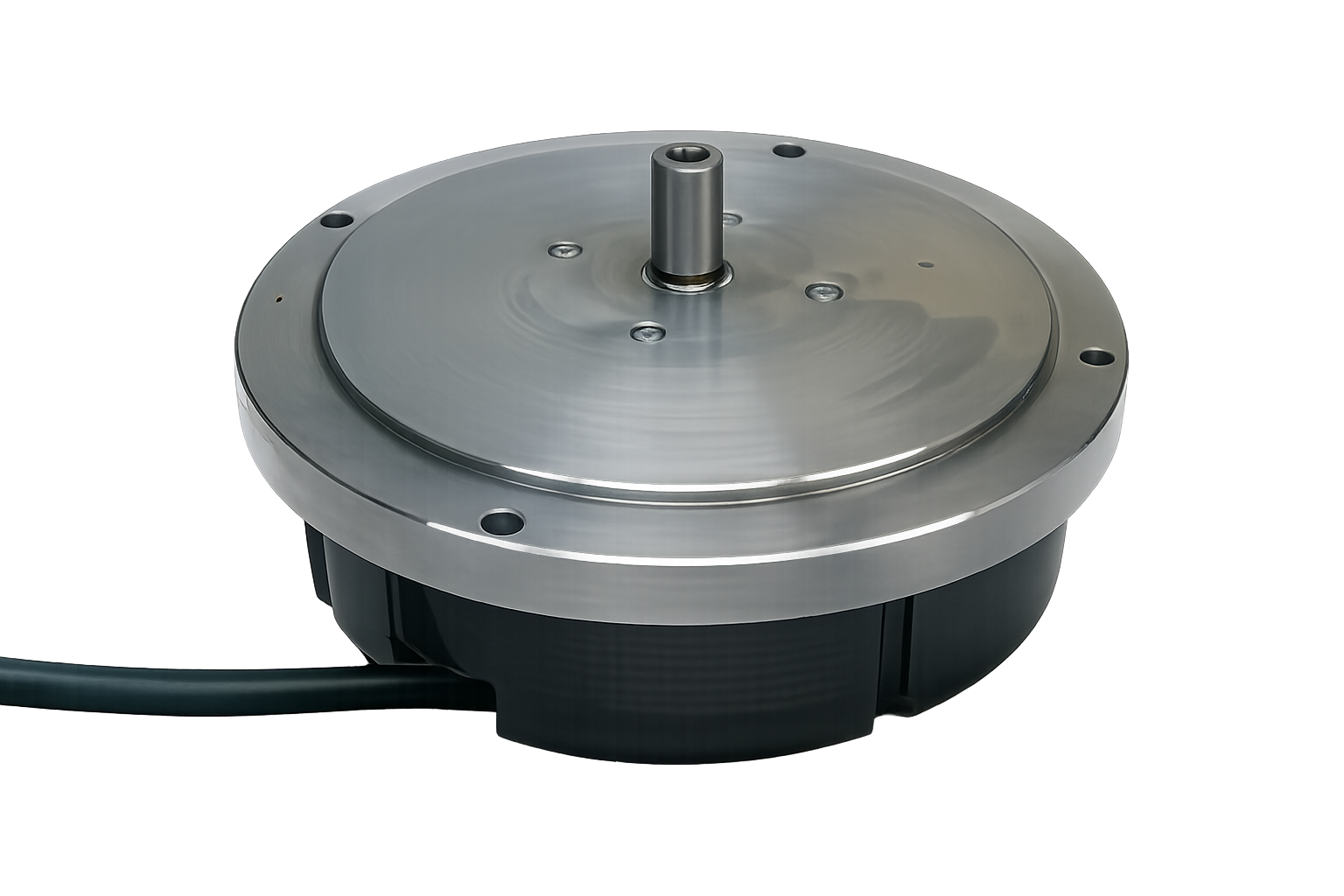

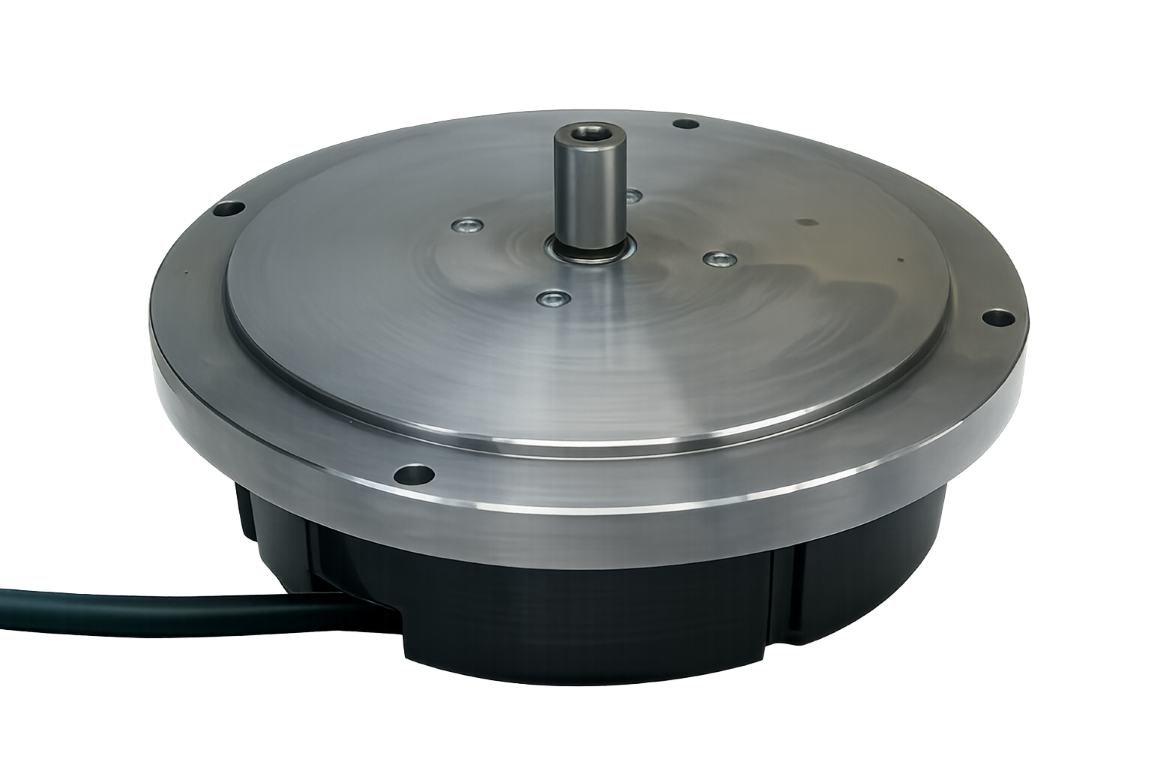

| Pulses per revolution | 18000 to 180000 | 18000 |
| Max. consumption at 5V (with no load) | 150 mA | 100 mA |
| Max. frequency | 150 – 4500 kHz | (-3 dB cutoff) ≥ 180 kHz |
| Max. rotating speed | continuous 500 rpm momentary 100 rpm | |
| Output | PP or LD | 1 Vpp sine wave |
| Max. shaft load | 30 N (axial) – 30 N (radial) | |
| Shaft (diameter × length) mm | Ø 14 × 21 | |
| Protection class (EN 60529) | IP 64 | |
| Power supply | 5 V ± 5% | |
| Download Brochure ↓ | ||
 | |||

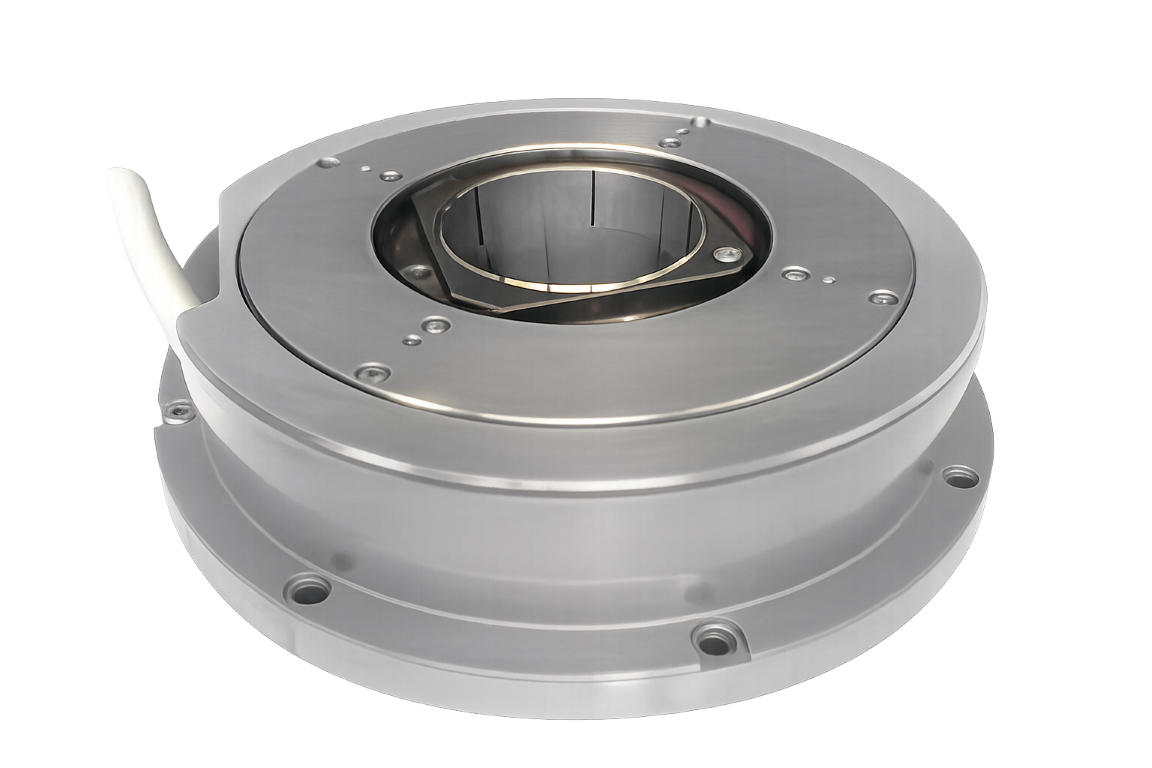

| Pulses per revolution | 18000 to 180000 | 18000 | |
| Max. consumption at 5V (with no load) | 150 mA | 120 mA | |
| Max. frequency | 150 – 4500 kHz | (-3db cutoff) 160 kHz | |
| Max. rotating speed | continuous 500 rpm momentary 100 rpm | ||
| Output | PP or LD | sinusoidale 1 Vpp/ 11A | |
| Max. shaft load | 30 N (axial) – 30 N (radial) | ||
| Shaft (diameter × length) mm | 50 H7 | ||
| Protection class (EN 60529) | IP 64 | ||
| Power supply | 5 V ± 5% | ||
| Download Brochure ↓ | |||
